Electrical Enclosure Filter Fans: Airflow, IP Ratings, Installation, and Maintenance

Electrical enclosure filter fans are not proof of cooling. A fan can be running normally while the cabinet is still failing thermally. A loaded filter, undersized exhaust, short-circuit airflow, blocked internal path, high ambient temperature, or wrong operating point can leave a VFD or power supply above its temperature limit.

The decision is simple: use a filter fan only when outside air may enter, maximum ambient temperature stays below the target cabinet temperature, installed airflow can remove the heat load, and the finished assembly can meet the project’s protection and maintenance requirements. If any one of those conditions fails, stop sizing the fan and reconsider the cooling method.

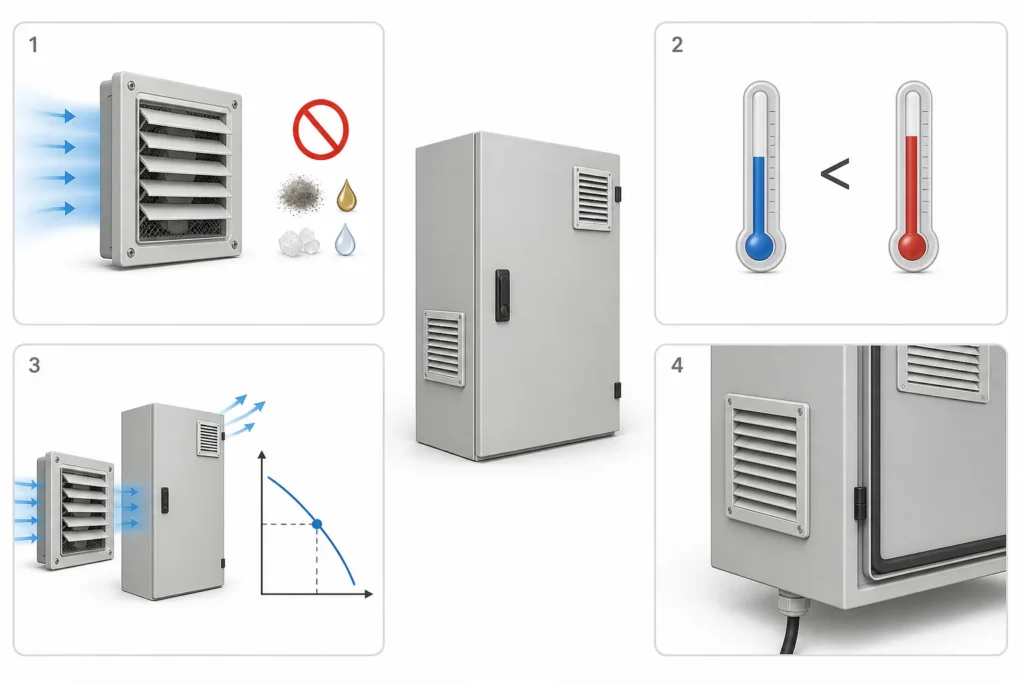

The 4A Filter-Fan Check

This is an open-loop cooling decision, not a fan-size decision. A larger fan cannot make dirty air clean, cool a cabinet below ambient, or repair an unverified opening.

Remember: Free-air CFM is a catalog condition. Installed airflow is an enclosure result.

A public application example with a clear evidence boundary

A Pfannenberg page about a 50 MW photovoltaic plant in the Philippines lists an outdoor filter fan at 505 m³/h and IP55. The values connect an outdoor application to airflow and component protection data.

The page is supplier-published application evidence, not independent proof of cabinet temperature, installed airflow, long-term field performance, or another finished enclosure’s rating.

That distinction should shape every selection: use public data to ask better engineering questions, then verify the project configuration.

Decide whether a filter fan belongs in the cabinet

A filter fan draws ambient air through filter media, across heat-producing components, and out through an outlet.

The arrangement is compact and avoids a refrigeration circuit. The tradeoff is direct: the enclosure now depends on outside air and a filter that will load over time.

Use a filter fan when all four conditions are true:

• Ambient air is clean enough to admit, or contamination can be managed with suitable media and inspection.
• Maximum ambient temperature leaves a useful temperature difference below the cabinet limit.
• The heat load can be removed at the fan’s installed operating point.
• The ventilated assembly can satisfy the project’s ingress, service, and evidence requirements.

Do not use one by default around conductive dust, machining oil, textile fibers, food powder, salt aerosol, corrosive vapor, high-pressure washdown, or uncontrolled wind-driven rain. A hood or higher-rated component may reduce one exposure path, but neither changes the open-loop principle.

Temperature sets a hard boundary. If the cabinet target is 40°C and maximum ambient is 42°C, ventilation cannot produce a 40°C cabinet.

Reduce the heat load, raise the allowable internal temperature, lower the surrounding ambient, or use active cooling.

Maintenance is the fourth gate. A filter located behind a machine, above a guarded platform, or against a wall may be technically replaceable but operationally neglected. If safe access and replacement media are not defined, the design is incomplete.

For the enclosure side of this decision, see the FN industrial automation enclosures page.

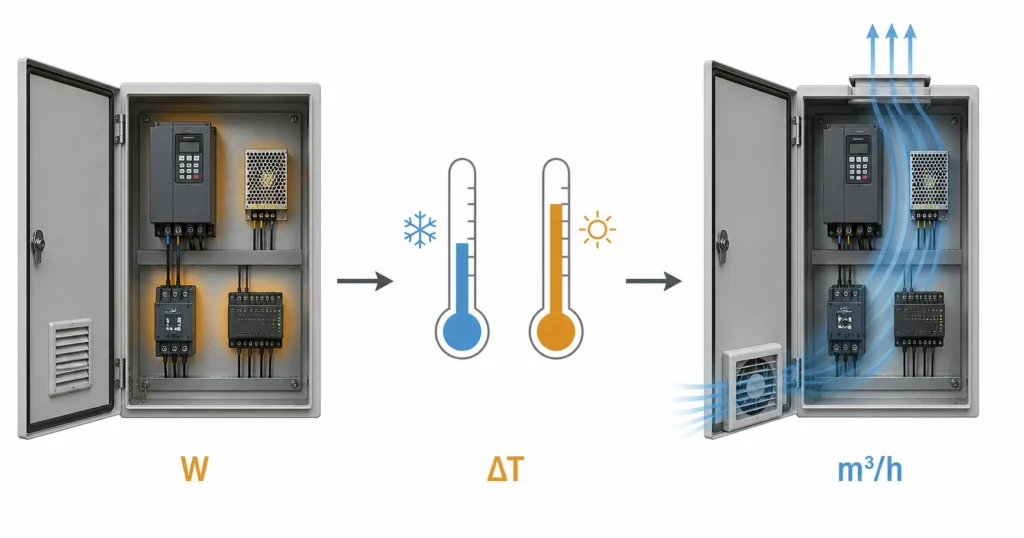

Calculate airflow from heat loss and allowable temperature rise

Size airflow from watts released inside the enclosure, not from enclosure volume or the equipment’s input rating.

A 7.5 kW drive does not release 7.5 kW into the cabinet. Use the manufacturer’s heat-loss data at the expected load.

Add losses from drives, power supplies, PLCs, relays, transformers, contactors, braking resistors, communication equipment, and other internal devices. Subtract heat deliberately rejected outside the enclosure.

The basic sensible-heat relationship is:

P = ρ × cp × q × ΔT

For a practical sea-level estimate using watts and degrees Celsius:

Required airflow, m³/h ≈ 3.1 × internal heat loss in W ÷ allowable temperature rise in K

Convert m³/h to CFM by multiplying by approximately 0.5886.

Worked example

Assume:

• Internal heat loss: 104 W
• Maximum ambient temperature: 30°C
• Maximum target enclosure temperature: 45°C
• Allowable temperature rise: 15 K

Required airflow = 3.1 × 104 ÷ 15 = 21.5 m³/h

21.5 m³/h × 0.5886 = 12.7 CFM

A public filter-fan sizing example shows the same 104 W, 30°C, 45°C, 21.5 m³/h, and 12.7 CFM values. It is a transparent supplier calculation, not an independent design standard.

The calculation produces a minimum heat-removal airflow under simplified conditions. It does not select the fan. The chosen unit must still deliver at least 21.5 m³/h after the intake filter, grille, internal path, outlet filter, hood, and expected contamination add resistance.

Altitude reduces air density, so each cubic metre carries less heat. Solar gain, recirculated exhaust, nearby equipment, load cycling, and a higher-than-estimated heat loss can move the real design point. State those conditions separately; do not bury them inside an unexplained safety factor.

Enclosure volume can check circulation, but it cannot replace heat-load sizing. A Fandis example uses 125 m³/h in a 5 m × 5 m × 5 m volume, which equals one air change per hour. That proves air replacement, not removal of a specified watt load.

The FN electrical enclosure sizing guide can help organize heat load, component clearances, mounting space, and future expansion before fan openings are released.

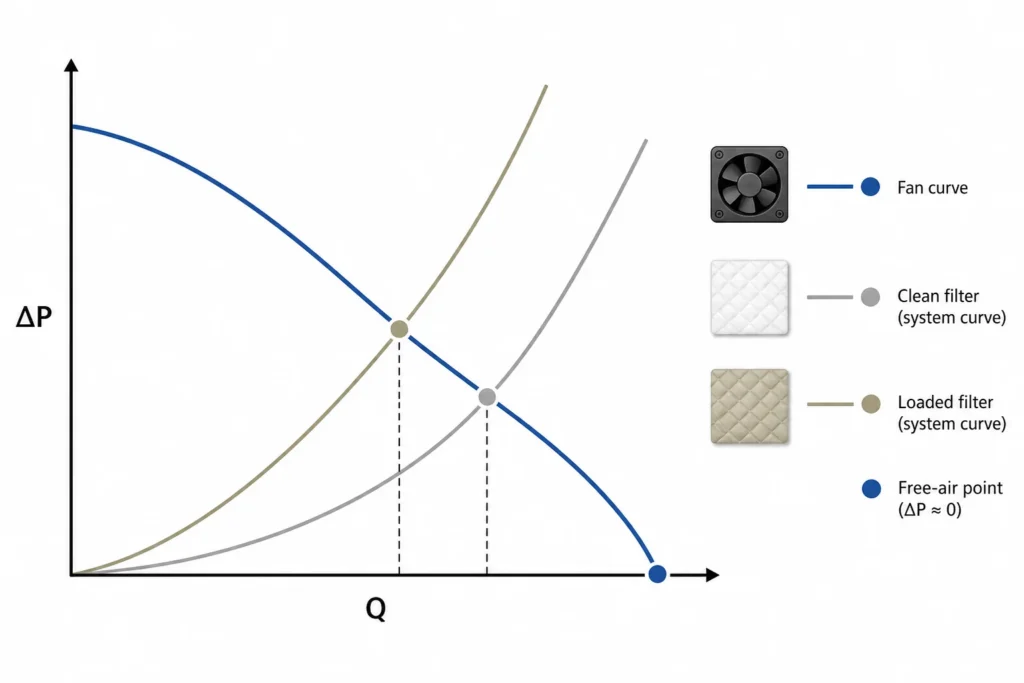

Select the working point, not the free-air number

A fan listed at 100 CFM may approach that value only near zero static pressure. The enclosure adds resistance at every stage: filter media, finger guard, louver, rain hood, narrow outlet, cable duct, wiring bundle, internal partition, and dirty filter.

The fan curve shows available pressure at different flow rates. The system curve shows the pressure required by the installed path. Their intersection is the operating point.

This is why a large catalog number can coexist with a hot cabinet. A cable duct may block the inlet jet. A passive outlet may be smaller than the fan opening. Air may cross directly from a door-mounted intake to a nearby exhaust while a VFD hotspot behind the mounting plate receives little flow.

Use this sequence:

• Calculate minimum thermal airflow.
• Map every restriction from intake to exhaust.
• Obtain the fan curve for the intended voltage, frequency, direction, and filter.
• Obtain pressure-loss data for the matching outlet and any hood.
• Find the clean-filter operating point.
• Check a realistic loaded-filter condition.
• Confirm that both conditions remain above the thermal requirement.
• Measure the finished cabinet during commissioning.

ISO 5801 covers standardized aerodynamic performance testing for fans. AMCA Publication 201 addresses system effects that can reduce installed performance. Standardized data helps compare fans; it does not remove the enclosure’s pressure losses.

A supplier page that lists one airflow number without a pressure curve leaves the selection unfinished. Ask for the curve, test configuration, filter condition, voltage, frequency, and airflow direction.

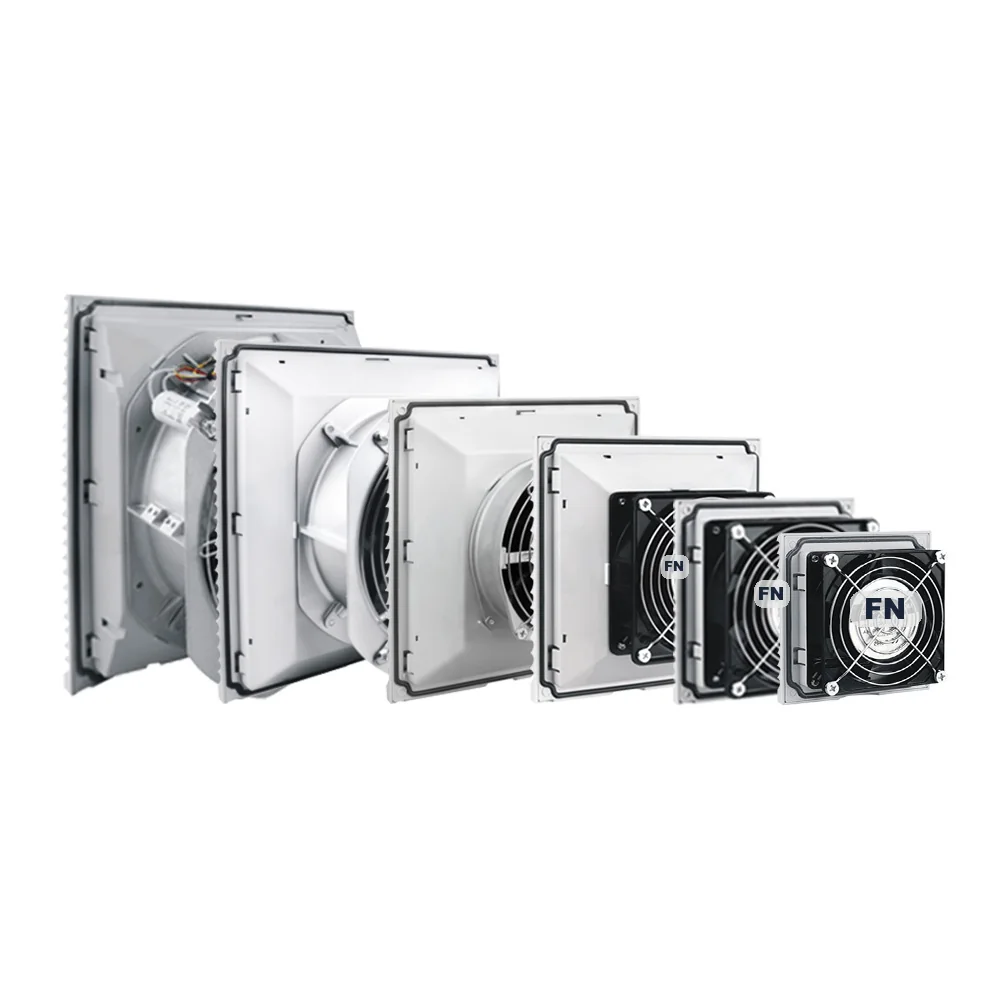

Published configurations: use them to shortlist, not to approve

The supplied 2026 Chinese product manual gives enough model-level information to compare physical scale, voltage, published airflow, and cutout size. Three AC 230 V examples cover a practical small-to-large range:

These are published catalog values for initial screening. The manual does not state the static pressure, whether the matching outlet was installed, whether the filter was clean or loaded, which frequency produced the listed airflow, or the test tolerance. Do not present these numbers as guaranteed installed airflow.

A separate axial-fan sheet adds current, power, speed, noise, weight, temperature range, and dimensional data for B-230 fan variants. Some values do not match the summary manual. That can reflect a different motor, revision, frequency, or test method. Do not subtract one document’s bare-fan airflow from another document’s filter-fan value to calculate filter pressure loss.

Procurement trigger: the family name is not enough. TB9805 and TB9806 accept multiple fan sizes and order codes. Freeze the exact order code, voltage, frequency, fan curve, outlet, filter media, cutout drawing, and document revision before releasing the enclosure drawing.

Product-range numbers need the same discipline. A Kooltronic Guardian Series update lists 20 to 1,310 CFM, NEMA 4 construction, and a NEMA 4X stainless-steel option.

That is published range data. It does not prove a cabinet will receive 1,310 CFM after filters, outlets, hoods, and internal obstructions are installed.

Fan on, cabinet hot? Check direction, filter loading, exhaust area, inlet-to-outlet short circuit, internal blockage, actual heat loss, maximum ambient temperature, supply voltage, and the selected working point before ordering a larger fan.

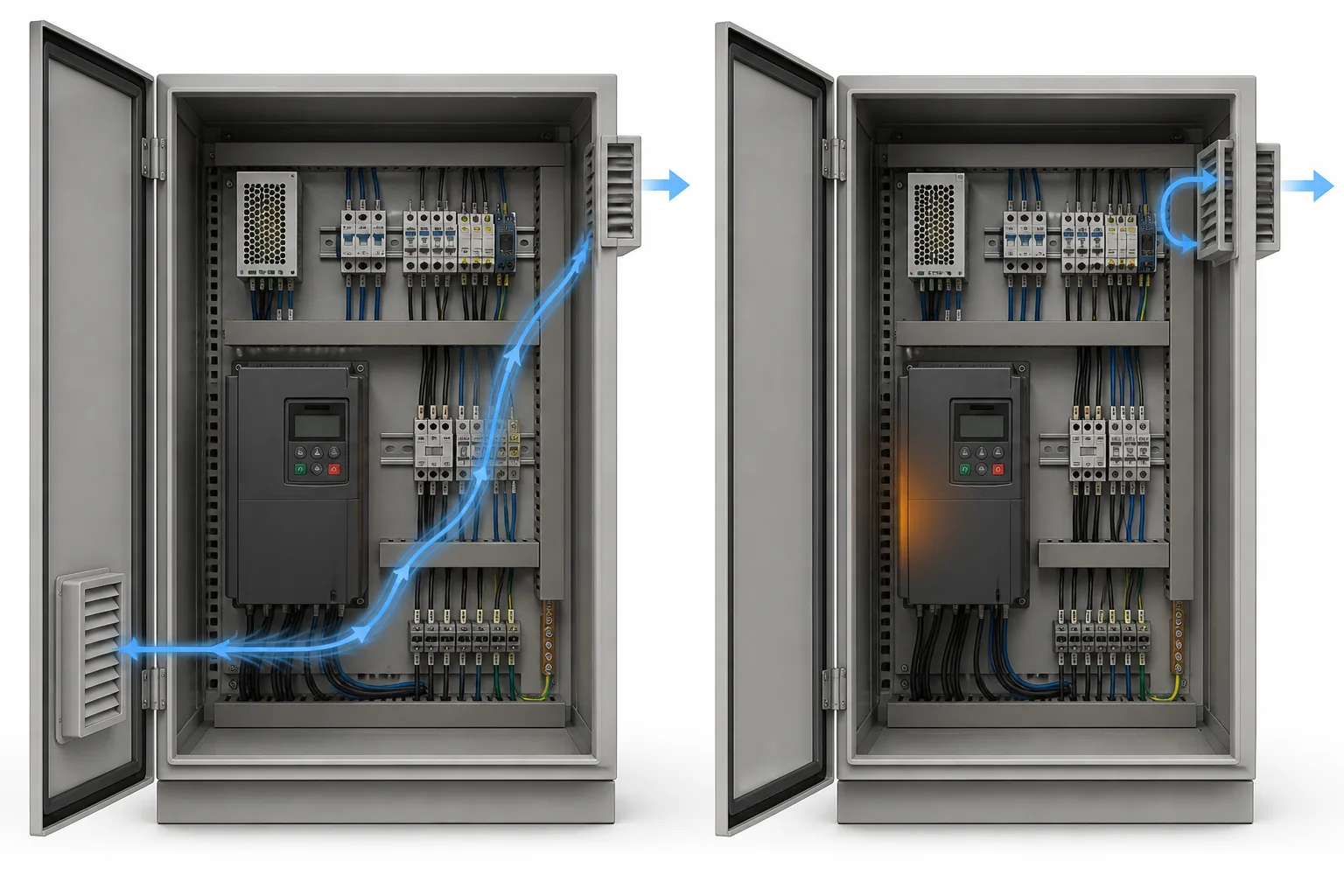

Build an airflow path that reaches the hot components

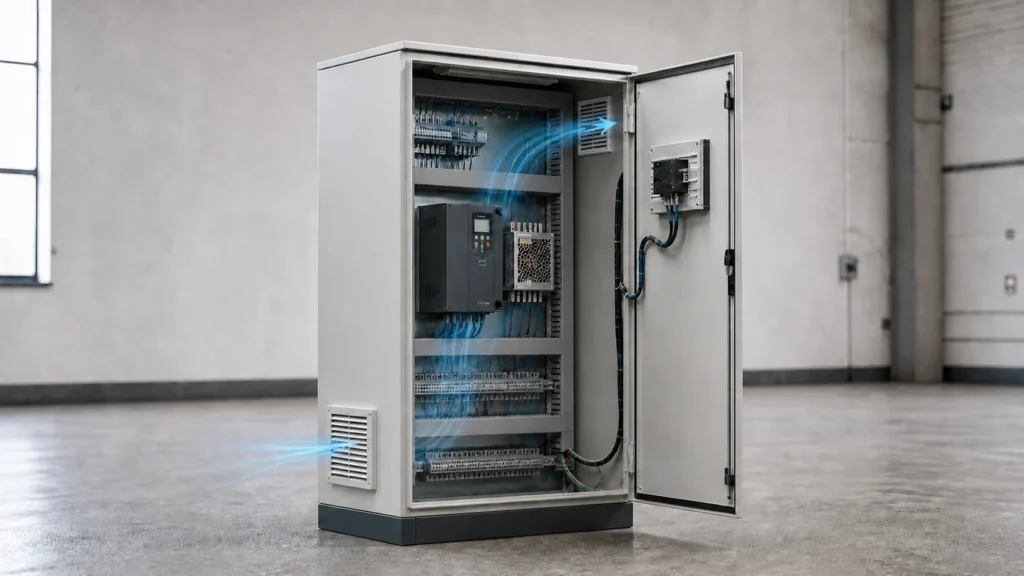

A low filtered intake and a high passive exhaust is a sound starting layout, not a universal rule. Position should follow the heat map.

Use a powered intake when slight positive pressure is desired. With controlled seams and penetrations, pressure encourages leakage outward instead of pulling unfiltered air inward through every gap. The effect is slight; the outlet must still be large enough to avoid choking the fan.

Draw the air path on the enclosure layout before approving cutouts:

• Mark each major heat source and its required clearance.
• Mark temperature-sensitive devices and likely hotspots.
• Trace air from the filter face to the outlet.
• Check cable ducts, wire bundles, shelves, mounting plates, and partitions.
• Move the intake or outlet if air can bypass the heat sources.
• Keep discharged hot air from returning to the intake.
• Leave external clearance for filter removal and airflow.

Look for the failure in physical terms. Is the inlet blowing into the side of a cable duct? Is the outlet hidden behind a wall? Are both openings on the same door, 200 mm apart? Is the hot drive mounted above the exhaust path? Those details decide whether airflow is useful.

Outdoor top outlets and horizontal openings need separate water review. A hood can change both rain exposure and pressure loss. Door-mounted fans also add moving wiring, weight, hinge load, and service-clearance constraints.

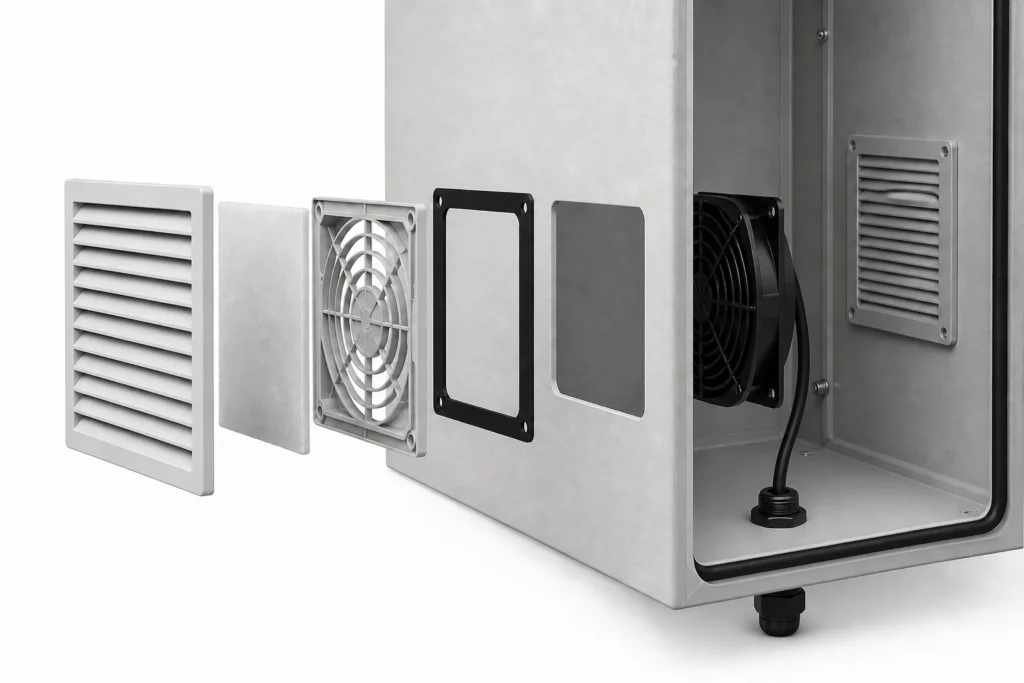

Fan openings are only part of the enclosure boundary. Cable entries, gland plates, drains, locks, seams, and door seals can become parallel air or water paths. The FN guide to cable glands, gland plates, and water ingress covers that wider penetration strategy.

Treat IP and NEMA as finished-configuration questions

A rating printed on the filter fan does not automatically transfer to the enclosure. The result depends on the fan, outlet, cutout, gasket, orientation, fasteners, hood, cable entries, door seals, and every other penetration in the tested or evaluated configuration.

The supplied NOXT manual describes the TB and FB filter-fan families as IP54 and identifies an ABS housing with polyamide filter media. Treat that as a supplier-published component-family statement. Before using IP54 in an RFQ or finished-enclosure claim, request the applicable standard, report or report summary, covered order codes, mounting direction, filter, gasket, retention method, matching outlet, and any hood used in the test configuration.

IEC 60529 defines the IP Code. The first numeral addresses access and solid-object ingress; the second addresses water ingress. IP5X is dust-protected under the standard’s conditions, IP6X is dust-tight, IPX4 addresses splashing water, and IPX5 addresses water jets.

NEMA enclosure Types cover a different set of construction and environmental requirements. NEMA’s official enclosure Types guidance states that IEC IP designations should not be used as substitutes for NEMA Type ratings in U.S. installations. A one-to-one conversion table is not compliance evidence.

Inspect the interfaces that can defeat the intended protection:

A public Fandis IP test-chamber article lists 0.6 L/min per 0.8 mm nozzle for IPX4 and 12.5 L/min through a 6.3 mm nozzle for IPX5. Those parameters show why an IP rating is a defined test condition, not a waterproof adjective.

The reviewed page did not provide a complete independently witnessed test file for a finished customer cabinet.

For enclosure-level rating decisions, see the FN IP65 vs IP66 electrical enclosure guide.

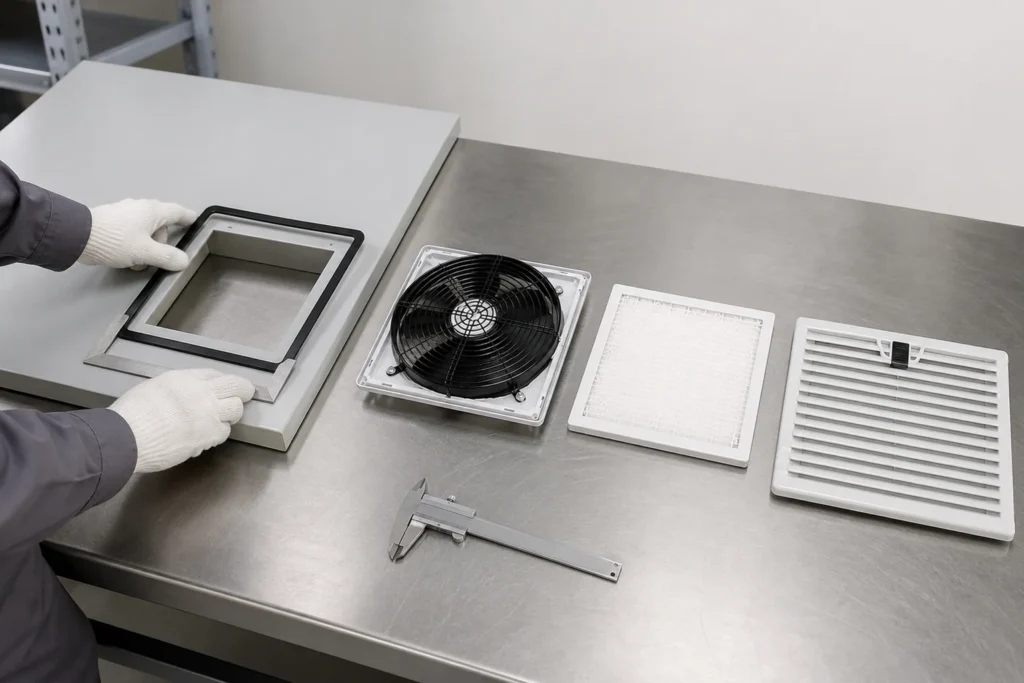

Control the cutout, gasket, wiring, and orientation

Installation quality is decided before the first chip falls. A late field cut can leave an oversized opening, chipped powder coating, bare carbon steel, weak gasket support, and a filter that cannot be removed without disturbing other equipment.

The three published examples above require 83 × 83 mm, 223 × 223 mm, and 283 × 283 mm cutouts. Those dimensions are not scalable rules. They show why the order code and approved drawing must be frozen before punching, laser cutting, coating repair, wiring, or door-layout approval.

Before fabrication

• Record the exact filter-fan family, order code, voltage, frequency, and document revision on the enclosure drawing.
• Use the approved manufacturer cutout drawing and tolerance.
• Confirm panel thickness and mounting method.
• Check for stiffeners, flanges, rails, ducts, latches, and internal components.
• Confirm the opening will not weaken the door or interfere with sealing pressure.
• Reserve external space to remove the filter mat.
• Freeze voltage, frequency, current, terminals, protection, and airflow direction.

During fabrication

• Keep chips and grinding dust away from installed equipment.
• Cut the specified dimensions and corner radii.
• Deburr without rolling or distorting the panel edge.
• Repair damaged coating or exposed metal with the approved process.
• Clean the gasket contact surface.

During installation

• Seat the gasket flat; reject folds and contamination.
• Install the fan in the specified intake or exhaust direction.
• Engage every clip or fastener evenly.
• Keep wiring away from the blade, hinge, door pinch points, and filter service path.
• Fit the matching outlet component and any specified hood.
• Close the door and check internal clearance before energizing.

A controlled factory opening is usually more repeatable than an improvised site modification.

FN can manufacture custom electrical enclosures with fan, filter, louver, and accessory openings based on approved drawings. The drawing should define size, tolerance, location, orientation, panel thickness, edge treatment, hardware scope, and whether accessories are fitted or supplied loose.

Preparing a fan or filter cutout? Send the approved component drawing, panel thickness, orientation, and finished rating target before enclosure fabrication.

Use controls to reduce exposure, not to hide a weak design

Continuous operation is simple, but it pulls air through the filter whenever power is present. In dusty or humid areas, that can load the media faster or import moisture when cooling is unnecessary.

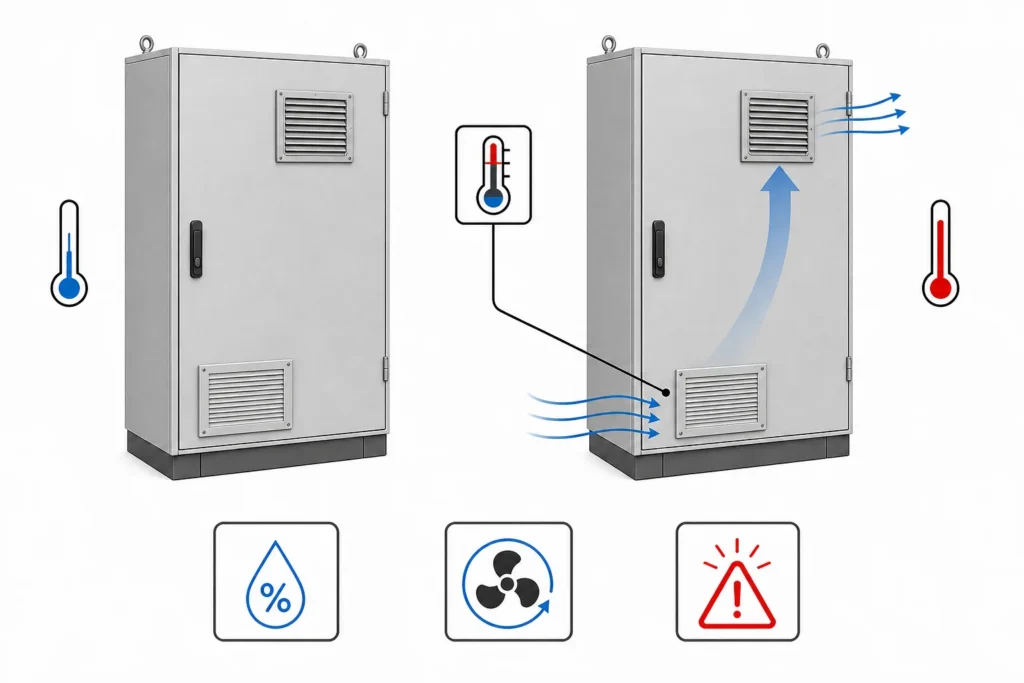

A thermostat can start the fan above a temperature setpoint and stop it after a defined hysteresis.

Place the sensor near the controlled risk, not in the cool inlet stream. A low-mounted thermostat may report a comfortable temperature while a drive above the mounting plate overheats.

A hygrostat responds to relative humidity, but condensation depends on dew point and surface temperature. Starting a fan may lower air temperature while importing more moisture. A heater, controlled ventilation sequence, dehumidification, or closed-loop system may be the better answer.

Useful monitoring options include:

• Tachometer feedback
• Locked-rotor or low-speed alarm
• Differential pressure across the filter
• Cabinet high-temperature alarm
• PWM speed input
• 0–10 V analog speed control
• PLC or network alarm integration

An Orion Fans control overview gives model-specific examples: a 5 V tachometer output, a typical 25 kHz PWM input, and 0–10 V proportional control. Check the selected fan’s data sheet; these signals are not universal.

Define what each alarm does. Does it create a maintenance work order, reduce machine load, start a standby fan, or stop the process? An alarm with no assigned response only records the failure.

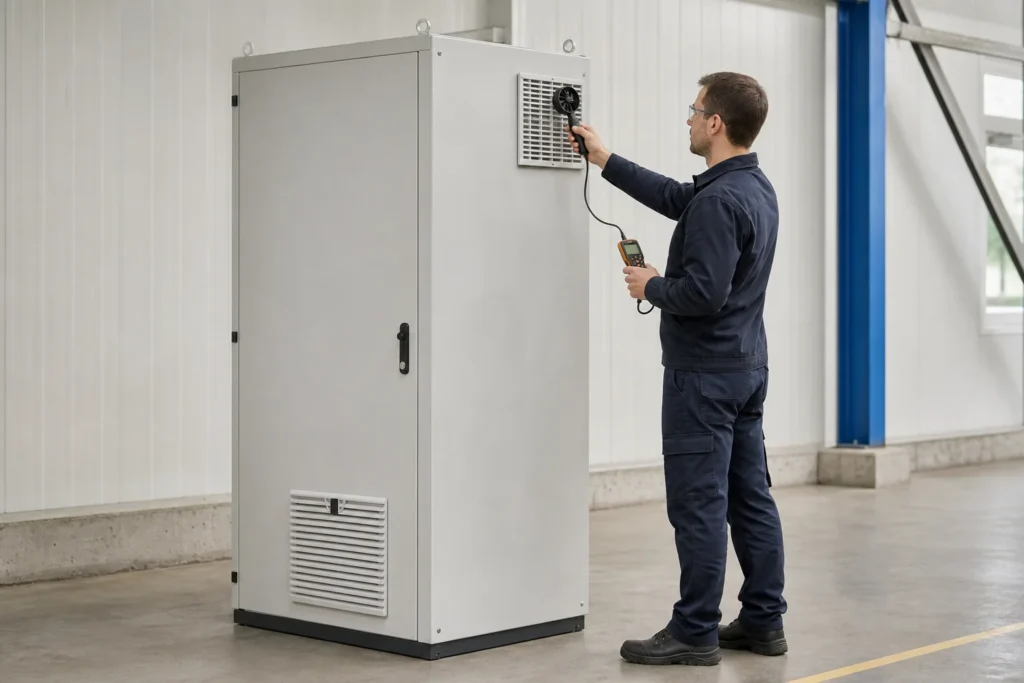

Commission the cabinet with the filter installed and the door closed

A spinning blade proves rotation. It does not prove heat removal.

Commission the cabinet in the configuration that will operate:

• Confirm fan, filter, outlet, hood, voltage, frequency, direction, and protective-device part numbers.
• Close doors, covers, and gland plates.
• Run a representative process load and record any difference from worst case.
• Wait for temperatures to stabilize.
• Record ambient, intake, exhaust, cabinet air, and critical hotspot temperatures.
• Check for weak flow, recirculation, blocked passages, and direct inlet-to-outlet short circuits.
• Inspect gasket compression, fasteners, coating repair, cable entries, drains, and water shields.
• Test thermostat switching, fan feedback, high-temperature alarm, and PLC response.
• Save a clean-filter baseline.

Acceptance criteria must exist before the test. State the maximum hotspot temperature, maximum cabinet-air temperature, minimum airflow or maximum differential pressure, alarm setpoint, operating load, ambient condition, and measurement method.

Minimum acceptance record

This record is the visible residue of the design. Months later, maintenance can compare a repeated high-temperature alarm, lower airflow, or darker filter mat with the clean baseline instead of guessing.

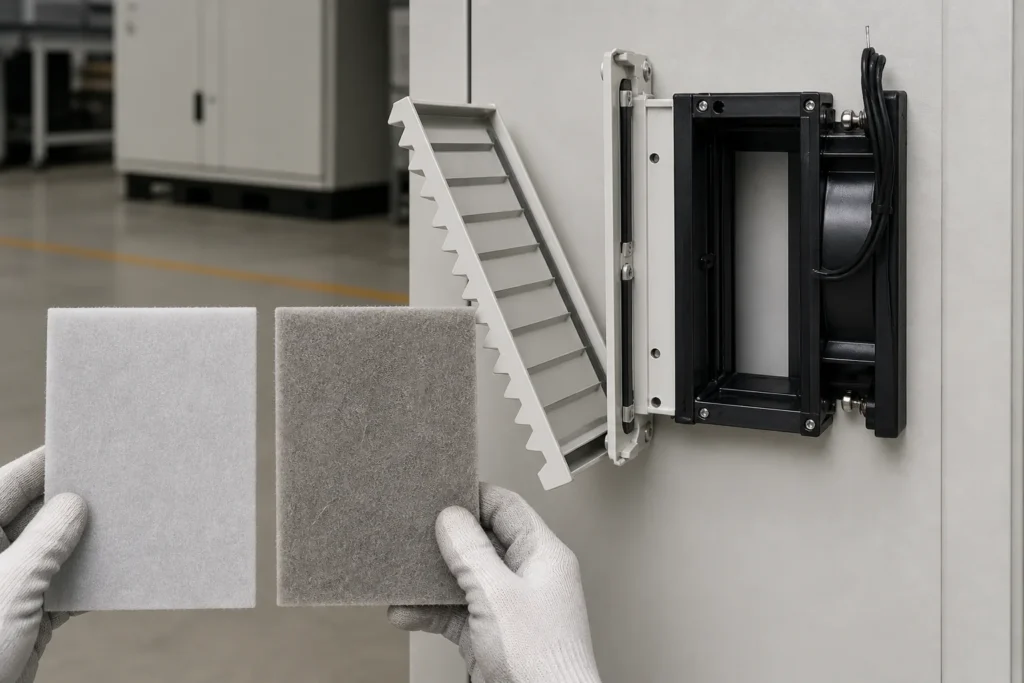

Maintain the filter by condition, not by a universal calendar

The same filter can remain clean in a control room and turn dark, matted, or oily beside a woodworking line or machining cell. A fixed interval copied from another site is not a maintenance strategy.

Start with a conservative inspection interval based on exposure. Adjust it only after the site has trend data.

Do not blow out a filter with compressed air unless the media manufacturer explicitly allows it. Air jets can damage fibers, enlarge passages, push contamination through the mat, or create a filter that looks clean but no longer performs as specified.

Supplier life claims should not become maintenance intervals. One Pfannenberg story reports a cooling unit returned for service after 15 years of use. Another Pfannenberg page claims 300% longer filter-mat service life.

Both are supplier-published claims. Neither proves a universal fan life, filter interval, or result in a different environment.

A useful service record includes the date, ambient temperature, process load, inlet and exhaust temperatures, alarm history, filter appearance, airflow or pressure reading, fan noise, and replacement part.

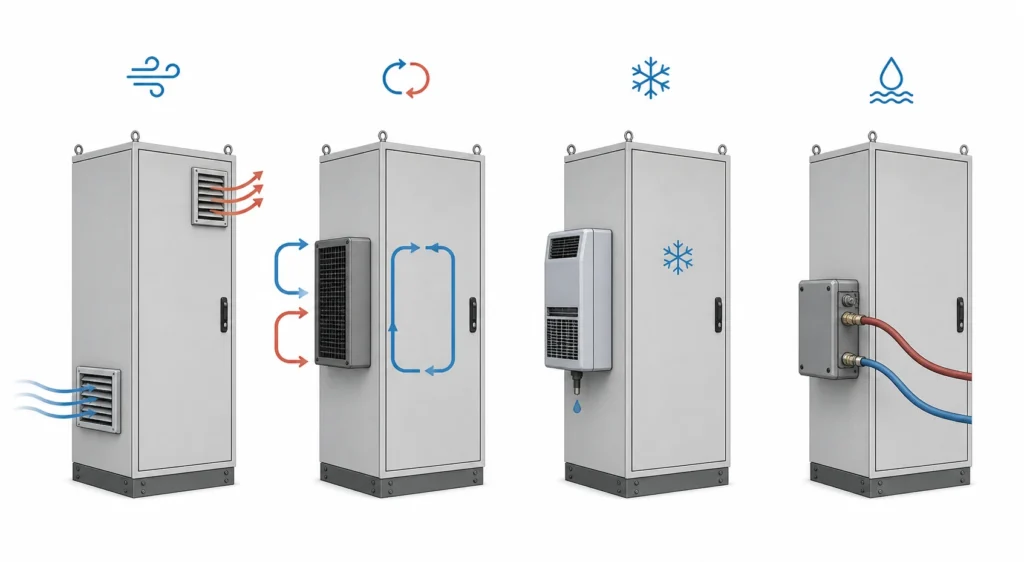

Change the cooling method when the physics or environment says no

Do not solve an unsuitable application with a larger filter fan.

Move to a closed-loop method when:

• Maximum ambient is equal to or above the allowable cabinet temperature.
• The cabinet must operate below ambient.
• Conductive dust, oil mist, salt, corrosive gas, or moisture cannot enter.
• The installation faces high-pressure washdown or uncontrolled rain.
• The required finished rating cannot be supported with ventilated openings.
• Filter access is unsafe or impractical.
• Available temperature difference and airflow cannot remove the heat load.
• Ventilation increases condensation risk.

An air-to-air heat exchanger separates internal and external air, but it still needs ambient air cooler than cabinet air. An enclosure air conditioner can cool below ambient, but adds condensate, refrigeration service, power demand, and heat rejection. An air-to-water exchanger shifts heat to a water circuit and adds piping, water-quality, leak, and control requirements.

The right question is not which device has the largest airflow or cooling number. Ask which method meets the temperature limit while preserving the required environmental separation.

Outdoor cabinets require one combined review of solar load, day/night temperature, rain, drainage, UV, corrosion, cable entry, and service access. The FN outdoor electrical enclosures page covers the construction side; thermal performance and environmental evidence still need a project-specific scope.

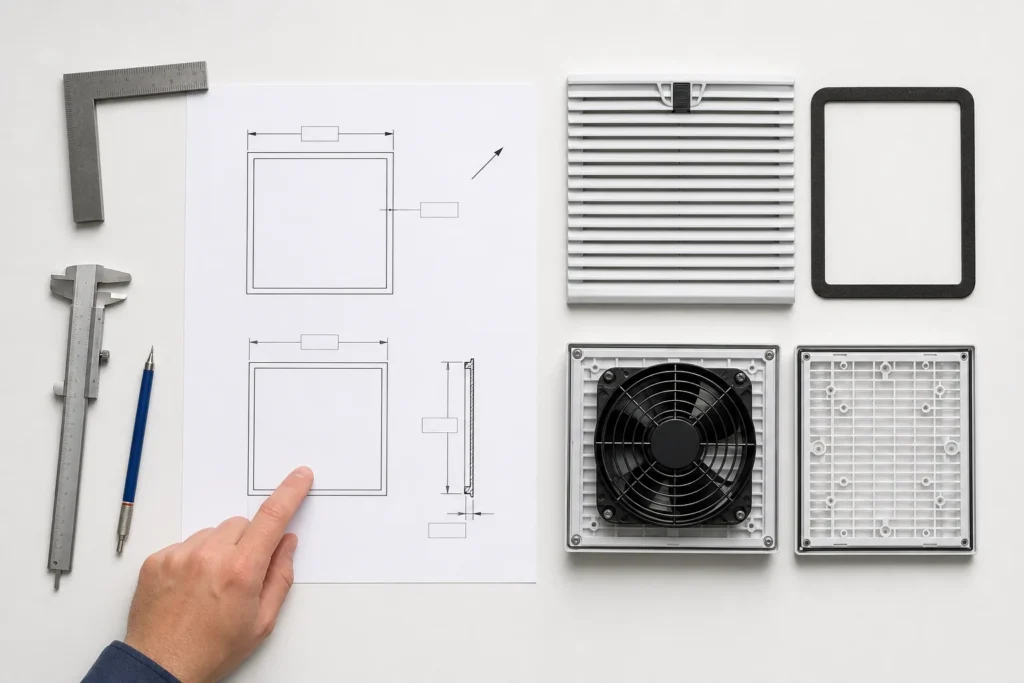

Send an RFQ that defines the whole cooling path

A fan part number is not enough. The enclosure manufacturer and cooling supplier need the conditions that determine the opening, airflow, protection, controls, and acceptance test.

Apply the 4A check one last time: Air allowed? Ambient lower? Airflow proven? Assembly acceptable? If the answer to one gate is no, change the design before releasing the enclosure drawing.

FN can manufacture an enclosure around approved fan, filter, louver, and accessory drawings. Confirm whether accessories are factory-fitted, supplied loose, or installed by another party. Also assign responsibility for thermal calculations, fan selection, complete-configuration rating evidence, commissioning, and site validation.

If you are preparing a custom cabinet, send the project requirements to FN with the heat load, environment, target temperature, protection requirement, cutout drawing, controls, and acceptance criteria.

FAQ
