Junction Boxes

Custom drawing-based boxes for cable connection, terminal mounting, field wiring, machine wiring, and compact OEM equipment integration.

FN coordinates box type, material, cover, cable entry, openings, DIN rail or mounting preparation, grounding, hardware, assembly scope, inspection, and packaging.

Custom junction boxes fit projects where standard boxes do not match the cable route, terminal layout, installation space, material, cover access, or equipment integration.

Common uses include machinery wiring, control systems, pump and motor connections, outdoor equipment, automation, distribution, sensors, terminals, and OEM equipment. A useful specification begins with wiring and access, not only external size.

The practical difference is wiring-space coordination

01 · CABLE ROUTE

Plan every entry before production

Confirm cable direction, gland or conduit size, connector model, edge distance, sealing, and field-wiring method before cutting openings.

02 · INTERNAL LAYOUT

Protect usable wiring space

Coordinate DIN rail, terminal height, mounting plate, grounding, component clearance, wire bending, labels, and cover depth.

03 · ACCESS AND SCOPE

Match cover and assembly expectations

Choose screw cover, hinged cover, lock, gasket, mounting, hardware, and project-based assembly scope from the actual maintenance and delivery needs.

Common box routes

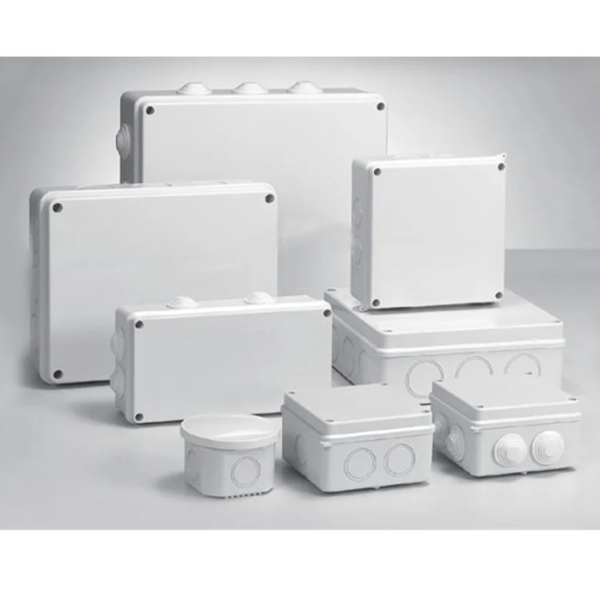

  • Screw-cover boxes for compact, occasional-access wiring space
  • Hinged boxes for repeated inspection or maintenance
  • Terminal boxes with DIN rail, terminals, grounding, and labels
  • Stainless, outdoor, machine-mounted, or OEM-shaped junction boxes

Confirm before ordering

  • Overall and usable internal dimensions, mounting, cover direction, and access
  • Cable glands, conduit, connectors, knockouts, openings, and field wiring
  • Material, finish, environment, gasket, hardware, and protection target
  • DIN rail, terminals, grounding, components, BOM, assembly, inspection, and quantity

Connection and internal space

Cable entry & internal layout

Plan openings and wiring space as one layout so the box does not require late drilling or lose usable depth.

Box Type Screw-cover box, hinged-cover box, terminal box, wall-mounted box, or OEM-shaped body
Materials Carbon steel, galvanized steel, stainless steel, aluminum, or project-specified material
Cable Entry Gland holes, conduit openings, knockouts, gland plates, connectors, and drawing-defined cut-outs
Internal Layout DIN rail, terminal blocks, mounting plate, grounding studs, brackets, and wire-bending space
Cover and Access Screw cover, hinged door, lock side, opening direction, gasket, and maintenance clearance
Mounting Wall, machine, frame, bracket, or equipment-body mounting
Assembly Scope Agreed hardware, terminal, component, grounding, gland, and wiring preparation from drawing and BOM
Packaging Surface protection, separated parts, labels, accessory checklist, and export packing

Fabrication and delivery scope

Manufacturing & assembly scope

The quotation should define whether FN supplies only the fabricated box body, a prepared enclosure with rails and hardware, or a project-based assembly scope from drawings, BOM, wiring rules, and inspection requirements.

01 ·

Review

Confirm box type, environment, dimensions, openings, terminals, mounting, and assembly scope.

02 ·

Manufacture

Fabricate the body, cover, openings, internal mounting, grounding, and agreed hardware.

03 ·

Prepare

Install agreed DIN rail, terminals, glands, components, or wiring preparation when included.

04 ·

Inspect

Check dimensions, openings, access, hardware, internal clearance, labels, assembly, and packaging.

Prevent common junction-box failures

Design controls

  • Cable entry, gland model, conduit size, connector, and field-wiring method
  • Terminal height, DIN rail length, usable depth, wire bending, and cover clearance
  • Cover or hinge direction, lock side, nearby equipment, and maintenance access
  • Material, finish, gasket, environment, mounting, and field-drilling risk

Assembly and inspection

  • Drawing, BOM, wiring rules, customer-supplied parts, and delivery condition
  • Opening positions, rail, terminals, grounding, components, labels, and wire preparation
  • Cover, gasket, locks, hinges, mounting, surface, and accessories
  • Inspection checklist, packing, labels, and shipment verification

Quotation questions

Project FAQ

Send these first

  • Drawing, sample, photo, or target external and internal dimensions
  • Cable glands, conduits, connectors, knockouts, and entry direction
  • DIN rail, terminals, mounting plate, grounding, components, and wiring route
  • Material, finish, cover, gasket, mounting, environment, and quantity
  • Assembly drawing, BOM, inspection, labeling, packaging, and destination
  •

Yes. FN can manufacture junction box bodies from confirmed drawings, samples, photos, or project specifications.

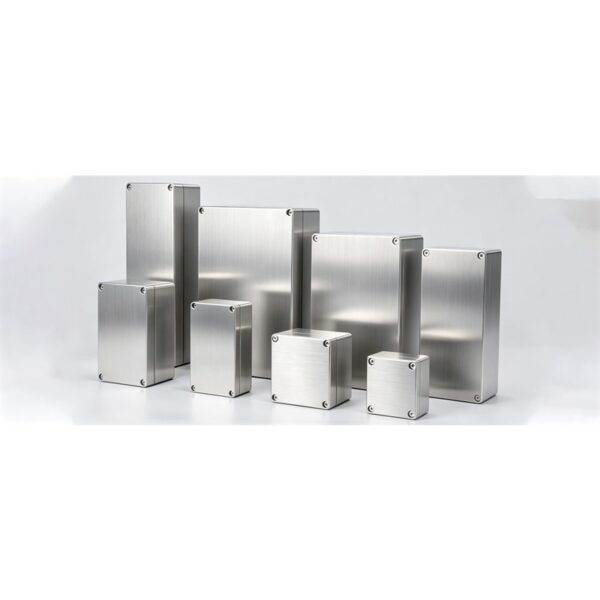

Stainless steel can be discussed for corrosion-aware, outdoor, washdown-related, or clean-finish projects, with grade, finish, hardware, and packaging confirmed for the environment.

Cable-gland holes, conduit openings, knockouts, gland plates, connector cut-outs, and mounting holes can follow the approved layout.

Project-based assembly can include agreed DIN rail, terminal, component, grounding, cable-gland, and wiring preparation when the drawing, BOM, rules, inspection, and delivery scope are confirmed.

FN does not claim third-party certification unless a specific product has confirmed documentation. Project structure, inspection, testing, and documentation requirements must be agreed separately.
