The short answer: foam gaskets for electrical enclosures seal only when the whole door system keeps the gasket in the right compression range. The gasket must be compressed enough to fill the gap, but not crushed so hard that it loses recovery. Over time, heat, moisture, UV, chemicals, repeated door opening, poor latch pressure, hinge-side sag, and compression set can reduce sealing force. When that happens, the cabinet may still look closed, but water, dust, humid air, or condensation risk can still enter the system.
So the real engineering question is not “do we have a gasket?” It is: will the gasket still have enough contact pressure after the enclosure is fabricated, painted, shipped, installed, opened, closed, heated, cooled, and aged in the actual environment?

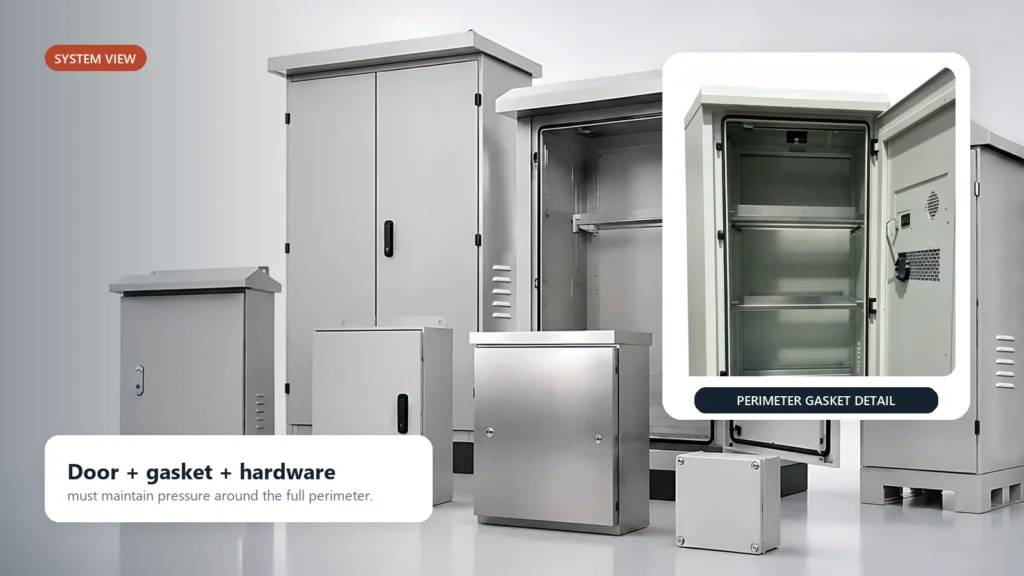

1. A Gasket Is Only One Part of the Sealing Chain
A foam gasket does not create sealing by itself. It works only when the surrounding structure supports it.
- Enclosure body and door frame
- Door flatness and stiffness
- Gasket material, height, width, path, and corner continuity
- Lock or latch compression
- Hinge alignment and hinge-side clearance
- Door gap tolerance and powder-coating thickness
- Cable entries, cutouts, vents, accessories, transport protection, and final installation
If any link fails, the whole enclosure protection target can be weakened. A buyer should not only ask, “What gasket do you use?” A better question is, “How is the gasket compressed, and how is that compression kept even around the whole door?”
2. Compression: The First Number to Control

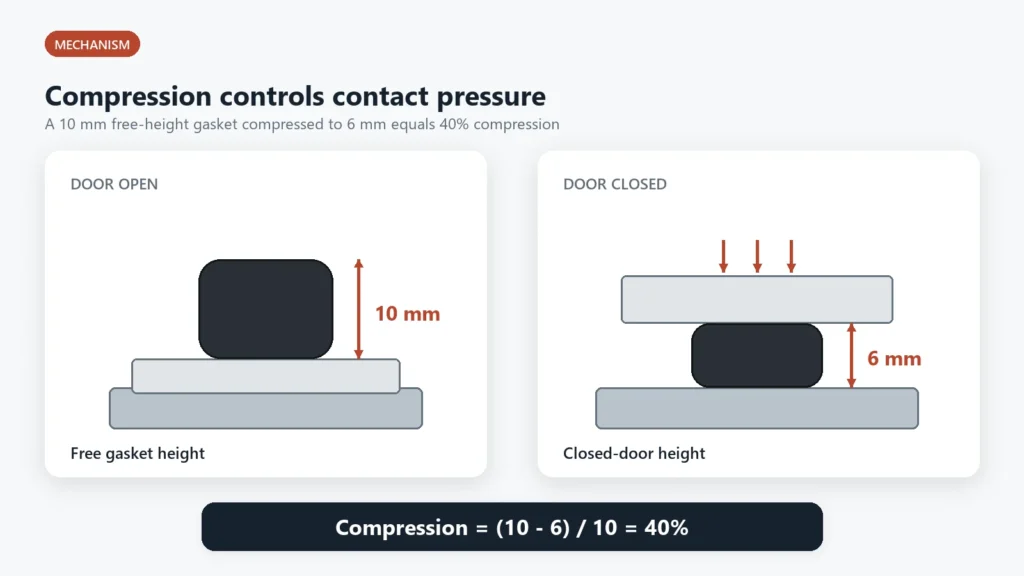

Compression is how much the gasket is squeezed after the door is closed.
| Item | Value |
|---|---|
| Free gasket height | 10 mm |
| Closed-door gasket height | 6 mm |
| Compression amount | 4 mm |
| Compression ratio | 40% |
That compression ratio matters because foam materials have a working range. Too little compression leaves leak paths. Too much compression can crush the foam, overload the latch, deform the door, or accelerate compression set.
- Check door gap, gasket height tolerance, coating thickness, door return geometry, latch grip range, hinge-side clearance, door bowing, corner radius, and manufacturing tolerance together.
- The most common mistake is treating compression as a material issue only. It is also a sheet-metal geometry issue.
3. Compression Set and Stress Relaxation

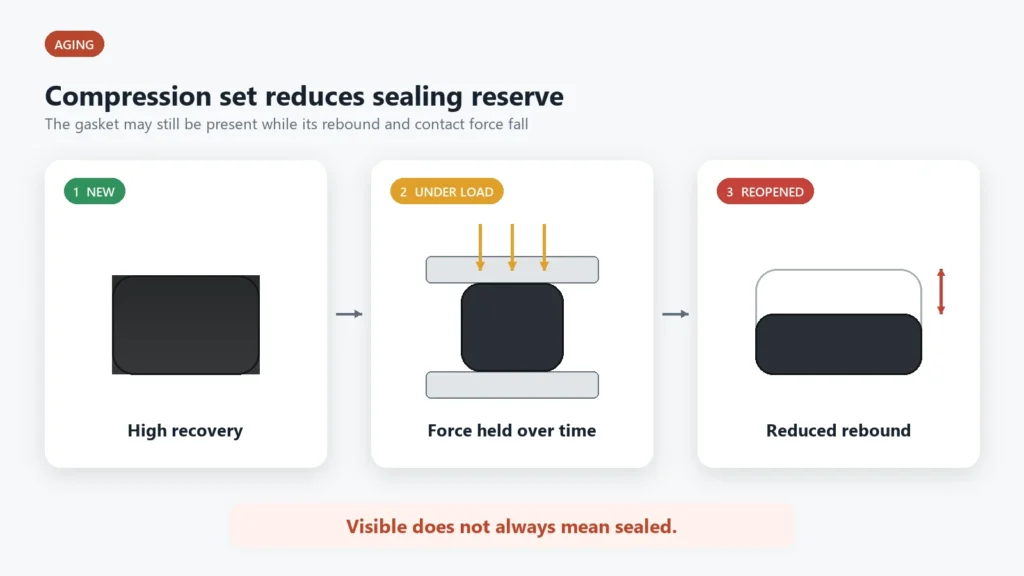

Compression set is the permanent loss of gasket thickness after being compressed for a period of time. Stress relaxation is the force loss that can happen even when the gasket still appears to touch the sealing face.
This matters because enclosure sealing depends on contact pressure, not only contact appearance. A gasket may still be visible, but if it no longer pushes back with enough force, the door seam can become a weak point.
- High compression set can lead to lower contact pressure, easier door closing than before, small gaps at corners or hinge side, dust tracks, water marks, condensation risk from humid air exchange, and reduced protection after aging.
- Stress relaxation becomes more important with heat exposure, long compression time, frequent door opening, marginal latch pressure, poor door flatness, or a gasket material that is not suited to the environment.
4. The Door System Decides Whether the Gasket Can Work
A good gasket cannot compensate for a weak door. Large enclosure doors often fail at the sealing level because of mechanical structure, not because the gasket material is bad.
| Structural factor | Why it matters |
|---|---|
| Door stiffness | A flexible door may compress near the latch but not in the middle or corners |
| Hinge alignment | Hinge-side gaps can reduce compression even when latch side is tight |
| Latch position | One latch may not compress a tall or wide door evenly |
| Door return depth | A shallow return may bend more easily and reduce sealing consistency |
| Flange flatness | Uneven sealing face creates local leak paths |
| Cutouts on the door | HMI, window, fan, or pushbutton cutouts can weaken the door |
| Transport deformation | Door gaps can change after shipping if the cabinet is not supported |
For larger cabinets, the answer may not be a thicker gasket. It may be more latches, a compression latch, a stronger door return, added stiffeners, or better hinge spacing.
5. Latches and Hinges Are Part of the Gasket Design

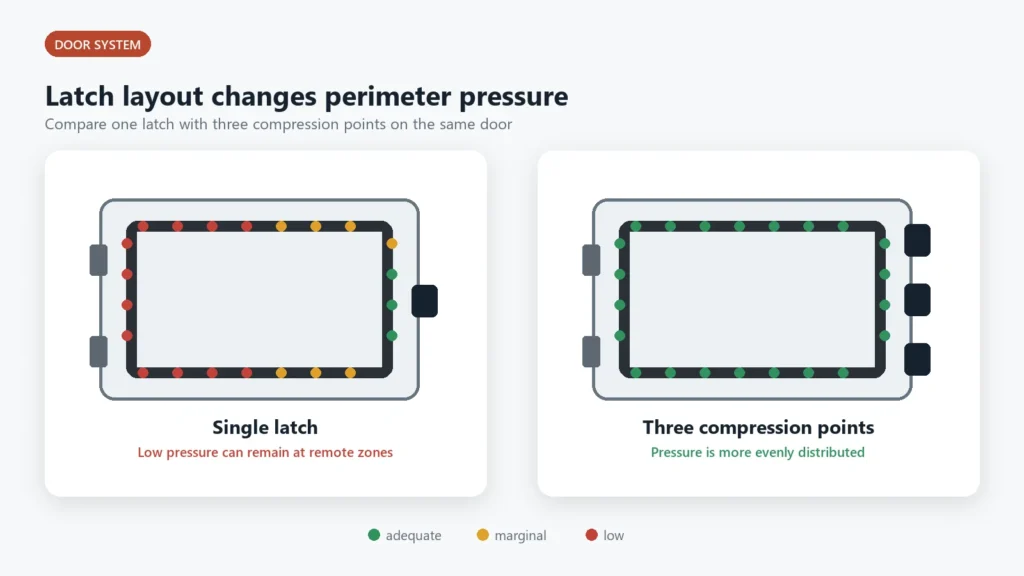

Locks are not only for access control. They create the closing force that compresses the gasket. A quarter-turn lock may be fine for a small indoor box, while a larger outdoor door may need a compression latch or multi-point locking system to keep pressure even.
- Does the latch have enough grip range and pull the door toward the sealing face?
- Is compression even between latch points?
- Is the hinge side compressed, or only the lock side?
- Does the door sag after repeated opening or transport?
- Does the gasket get cut or rubbed near the hinge?

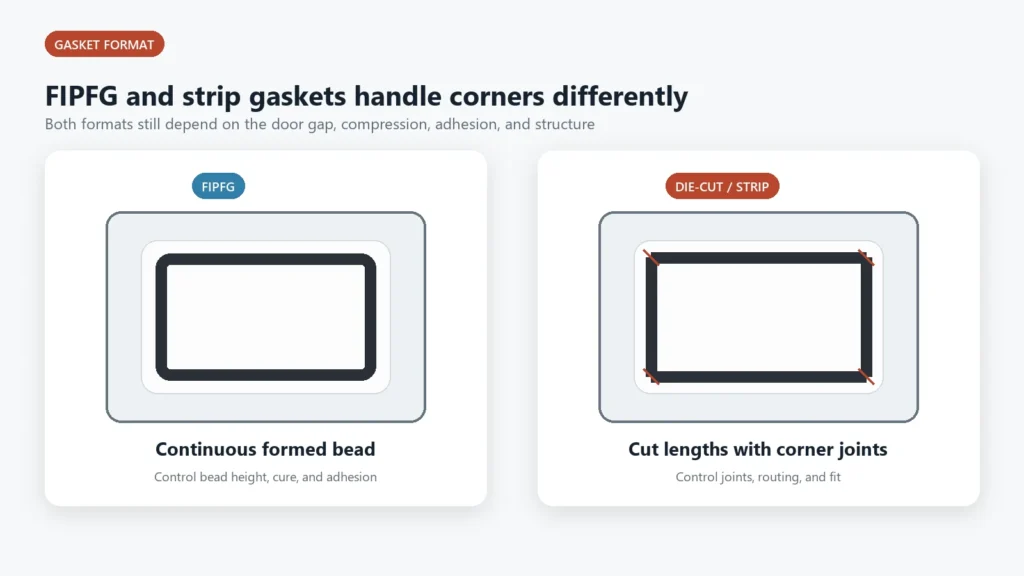

6. FIPFG vs Die-Cut or Strip Gaskets
| Gasket type | Strengths | Risks to control |
|---|---|---|
| FIPFG formed-in-place foam gasket | Continuous path, automated dispensing, good for cabinet doors and complex paths | Mix ratio, bead height, curing, corner continuity, adhesion, compression range |
| Die-cut foam gasket | Consistent shape, good for covers, panels, and repeat parts | Joint design, material waste, tolerance, long-term compression |
| Adhesive strip gasket | Simple and flexible for small batches or repairs | Joint gaps, stretching during installation, adhesive aging, inconsistent placement |
| Molded gasket | Good repeatability for defined products | Tooling cost and design lock-in |
FIPFG is not simply applying a foam line. The sealing result depends on material system, mix ratio, dispensing speed, bead height, bead width, corner path, foam cell structure, curing condition, adhesion to coated metal, and door compression after assembly.
7. Aging Factors and Material Selection

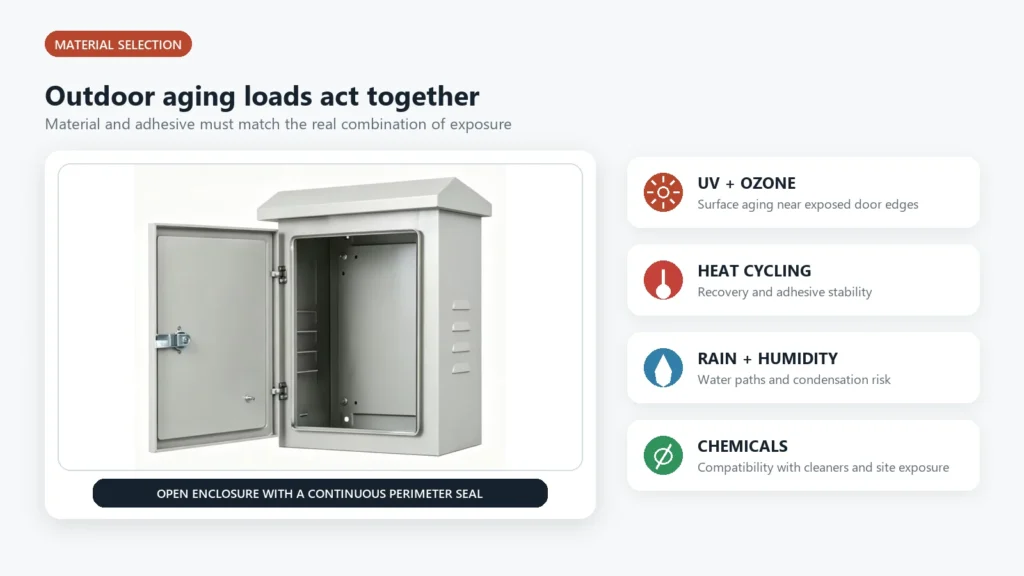

Foam gasket aging depends on the material and the environment. Outdoor electrical enclosures are especially demanding because they combine sunlight, temperature cycling, moisture, and sometimes salt or chemicals.
- Review heat from sun or internal components, UV exposure near door edges, moisture and condensation, ozone, salt mist, oils, cleaners, chemicals, dust, frequent door opening, long-term compression, and vibration.
- Do not choose by softness alone. Choose by long-term recovery, environmental resistance, and compatibility with the enclosure structure.
| Material family | Typical strengths | Watch points |
|---|---|---|
| Silicone foam | Good temperature range, recovery, outdoor aging, UV ozone resistance | Higher cost; material grade still matters |
| EPDM foam | Weathering, ozone, and outdoor resistance; common for exterior sealing | Check compression set, temperature, and chemical compatibility |
| Polyurethane foam | Common in FIPFG and cushioning/sealing uses | Must be matched to outdoor aging, hydrolysis, and compression requirements |
| Neoprene/blended foam | General-purpose sealing and cushioning | Check chemical, temperature, and aging limits |
| Solid rubber gasket | Stronger mechanical seal in some applications | Higher closing force; may require stronger latch/door structure |
8. Selection Path by Application
Gasket selection should start from the enclosure application, not only from the gasket material name. The same foam family may behave differently when door size, closing force, opening frequency, temperature, UV exposure, and installation environment change.
| Application | Recommended direction | Main failure risk | Design checks before production | Buyer quote information |
|---|---|---|---|---|
| Indoor control box | Use a stable foam or strip gasket matched to the actual door gap, dust level, and normal service temperature. Avoid over-specifying expensive outdoor materials if the enclosure is installed in a controlled room. | Dust ingress, light splash, poor cable-entry sealing, or local leakage caused by a simple door-gap mismatch. | Check door flatness, gasket height, latch grip range, powder-coating thickness, corner joints, and whether cutouts or glands interrupt the sealing path. | Indoor dust level, cleaning method, humidity, opening frequency, door size, target protection level, and photos or drawings of cable entries. |
| Outdoor enclosure | Prioritize aging resistance, recovery after compression, UV ozone resistance, water-path continuity, and stable adhesion to the coated metal surface. | Rain can collect at the lower edge, enter through corners, pass through cable entries, or exploit weak hinge-side compression after aging. | Review roof or drip-edge design, bottom edge drainage, hinge-side compression, latch spacing, corner bead continuity, door return depth, and whether the enclosure is mounted vertically or at an angle. | Rain direction, sunlight exposure, temperature range, installation angle, wash-down risk, cable-entry layout, and whether a project-defined spray or sealing check is required. |
| Large door or cabinet | Treat the gasket as part of a door-compression system. Do not solve large-door leakage only by increasing gasket thickness; control compression distribution around the perimeter. | The latch side may seal while the middle span, corners, or hinge side remain under-compressed because the door bows or twists. | Check sheet thickness, door return depth, reinforcing ribs, multi-point locking, compression latches, hinge spacing, door bowing, and packaging support for transport. | Door size, material thickness, cabinet height, lock quantity, hinge type, acceptable closing force, shipping method, and whether the door will carry accessories. |
| Frequently opened door | Choose gasket material and geometry with good recovery after repeated compression cycles. Hardware durability becomes as important as gasket material. | Repeated opening can create latch wear, hinge sag, gasket rubbing, adhesive fatigue, and user-dependent closing pressure. | Check latch life, hinge strength, gasket rubbing near the hinge, adhesive bond, replacement access, and whether the door can close consistently without special operator care. | Expected opening cycles, maintenance habits, replacement interval, user environment, whether the door is opened in rain or dust, and whether service tools may damage the gasket. |
| High temperature UV environment | Prioritize heat aging, compression set resistance, UV ozone resistance, adhesive stability, and compatibility with coating, chemicals, and cleaning agents. | The gasket may still look present, but heat and UV can reduce recovery, weaken contact pressure, harden or crack the surface, or weaken adhesive bond. | Check maximum surface temperature, gasket recovery after heat exposure, coating adhesion, adhesive system, door expansion, and whether the material remains elastic over the target service life. | Maximum and minimum temperature, sunlight hours, nearby heat source, chemical exposure, cleaning method, required service life, and whether the enclosure faces direct afternoon sun. |
9. Gasket Geometry, Adhesion, and Surface Preparation
Gasket geometry is as important as material. Check height, width, continuous path, corner design, sealing surface flatness, distance from cut edges or bends, hinge interference, and coating thickness.
For adhesive strip gaskets or foam-in-place gaskets, the bonding surface matters. Oil, dust, coating defects, poor adhesion, stretching during application, incomplete curing, corner lifting, path offset, overspray, and surface roughness can all create leak paths.
- Minimum production checks: clean surface, continuous gasket path, unbroken corners, consistent height, firm adhesion, no rolling during door close, and visible even compression.
- Corners deserve special attention because many enclosure leaks begin where the gasket is stretched, cut, overlapped, over-foamed, under-foamed, or compressed unevenly.

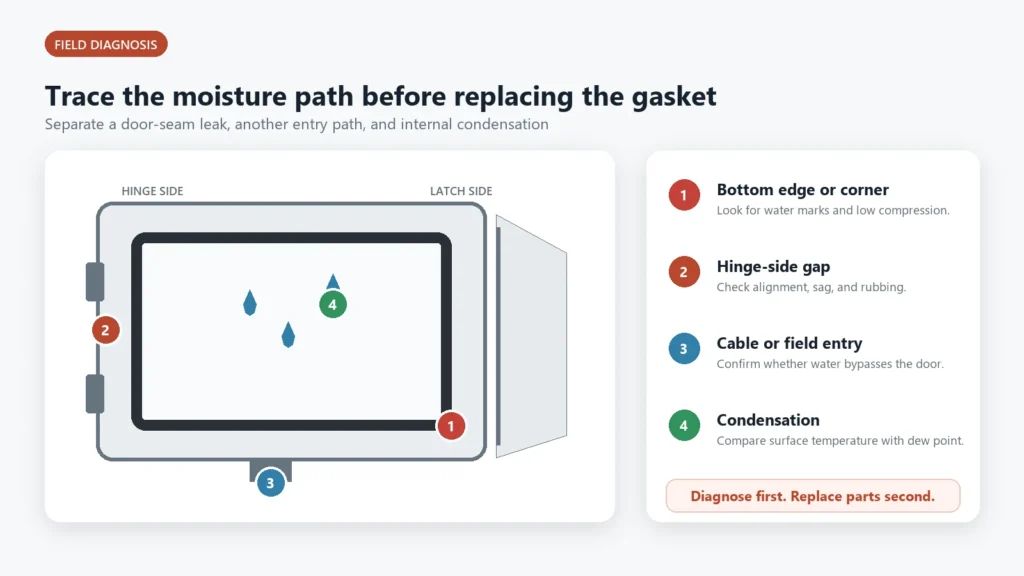

10. How to Diagnose Field Leakage
If a customer says the enclosure leaks, do not assume the gasket material is the only cause. Use this order:
- Is the water coming from the door seam or from cable entries, vents, windows, or field cutouts?
- Is the leak concentrated at the hinge side, latch side, bottom, top, or corners?
- Is the gasket continuous around the full perimeter?
- Is the gasket flattened or permanently deformed?
- Is the door warped or sagging?
- Does the latch compress the gasket evenly?
- Were holes added on site?
- Were cable glands matched to actual cable diameter?
- Did transport deform the door or frame?
- Is the issue actually condensation rather than external water ingress?
Water inside an enclosure is not always leakage. A well-sealed box can still have condensation if humid air is trapped inside and the surface temperature drops below the dew point.
| Field sign | Likely cause | Fast on-site check | Factory design review | Corrective direction |
|---|---|---|---|---|
| Water marks near the lower edge | Water may enter at weak bottom-edge compression, a bottom corner, a cable entry, an accessory cutout, or a flange area where water can sit instead of draining away. | Look for water trail direction, bottom gasket compression mark, local flattening, open corner joint, loose cable gland, and whether the enclosure is tilted or mounted in a water-holding position. | Review lower flange geometry, drip edge, bottom corner bead, door gap after closing, gland cutout sealing, coating thickness, and whether packaging or installation changed alignment. | Improve bottom-edge compression, correct drainage or drip design, seal entries, adjust latch pressure, redesign the corner path, or define a project-specific water-spray check. |
| Dust track around the door | The gasket may touch the frame but lack enough contact pressure. Dust tracks often show marginal compression, poor recovery, or a gap that opens during vibration or thermal movement. | Check whether the dust line is continuous or local, compare compression marks around the full perimeter, press gently near the dust track, and inspect gasket flattening or hardening. | Review gasket height, closed-door gap, latch grip, flange flatness, hinge-side clearance, compression set, and whether the material is suitable for the dust and temperature environment. | Adjust gasket height or target compression, improve latch force, correct flange flatness, replace aged gasket, or add latches where the door span is too wide. |
| Leakage on the hinge side | The hinge-side gap may be larger than the latch-side gap, or the door may sag after repeated opening, heavy accessories, transport, or poor hinge alignment. | Compare latch-side and hinge-side compression marks, check whether the hinge side can be pulled tighter by hand, inspect hinge wear, door sag, and gasket rubbing near hinge barrels. | Review hinge spacing, hinge mounting tolerance, door weight, door return stiffness, latch layout, gasket path near the hinge, and post-packaging door alignment. | Correct hinge alignment, strengthen the door, add support or more latches, review hinge position, reduce unsupported span, or change gasket geometry near the hinge side. |
| Corner leakage | Corners are high-risk because the gasket path may be discontinuous, stretched, cut, poorly joined, under-cured, under-compressed, or affected by paint buildup and radius changes. | Inspect corner bead height, strip joint, adhesive lift, visible gap, compression mark, crack line, and whether water or dust starts exactly at the corner. | Review FIPFG dispensing path, corner radius, bead width, curing, strip joint design, adhesive compatibility, paint thickness, and whether the latch layout gives enough corner pressure. | Improve FIPFG corner control, redesign strip joints, increase corner compression, adjust corner radius, improve surface preparation, or add hardware support near the corner. |
| Door deformation or bowing | The door may be too flexible for the gasket force, cabinet size, or transport stress. Local gaps can remain even when the latch is closed. | Place a straight edge across the door, compare gap at latch, middle, hinge side, and corners, inspect whether closing force bends the door instead of compressing the gasket. | Review sheet thickness, return depth, stiffeners, latch spacing, hinge spacing, gasket compression force, accessory weight, and whether shipping support protects the door frame. | Add stiffeners, use more latches or compression latches, improve door return, reduce unsupported span, lower excessive gasket force, or strengthen packaging support. |
11. Quote and Drawing Review Checklist
For custom enclosure projects, send these details before gasket selection:
| Information | Why it matters |
|---|---|
| Door size and door type | Large doors need stronger compression control |
| Door gap or target gap | Determines gasket height and compression |
| Gasket path drawing | Confirms continuity and corner design |
| Material and surface finish | Affects adhesion and aging |
| Lock and hinge layout | Controls compression distribution |
| Installation environment | Drives material choice |
| Door opening frequency | Affects recovery and wear |
| Protection target | Defines sealing expectation and test discussion |
| Cable entry and cutouts | May be bigger leakage risks than the door gasket |
| Packaging and transport method | Door deformation can change sealing after shipment |
If the buyer cannot provide all of this, start with a drawing, photos, environment description, and target protection requirement. The manufacturer can then identify missing items.
12. How to Check Whether a Supplier Understands Enclosure Gasket Sealing
A supplier who understands enclosure sealing will not answer only with a gasket material name. The useful discussion should connect gasket compression with door gap, latch layout, hinge side, cable entries, coating, environment, and production inspection.
- Ask whether the supplier reviews gasket compression together with door gap, door size, lock quantity, hinge layout, and cable-entry sealing.
- Ask what photos or measurements they need before recommending a material.
- Ask how they check corner continuity, adhesion, door closing force, and hinge-side compression before shipment.
- Ask whether project-defined sealing checks are inspection or project testing, not third-party certification unless a real certificate or test report exists.
13. Manufacturing and QC Checks

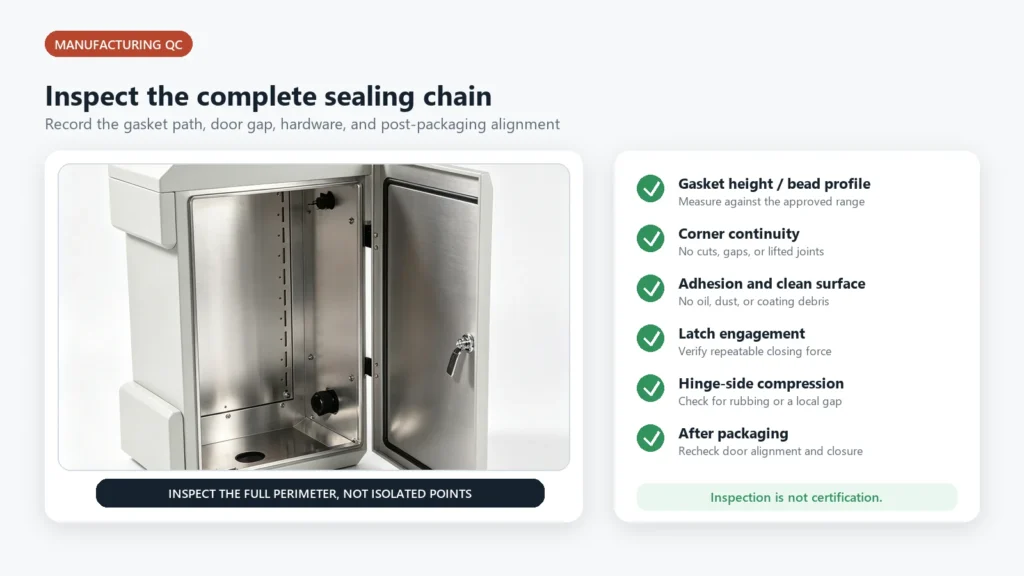

- Check gasket bead height or strip height, gasket path position, corner continuity, adhesion, door closing force, door gap after closing, latch engagement, hinge-side compression, visual compression mark, door flatness, and packaging support.
- For higher-risk outdoor projects, consider sample approval, first article inspection, door-gap photos, gasket close-up photos, project-defined water-spray or sealing checks, and post-packaging door alignment checks.
- Do not call this “certification” unless there is a real certificate or test report. It is better to describe it as inspection, project testing, or production quality control.
14. Common Mistakes
| Mistake | Why it matters | Better approach |
|---|---|---|
| Choosing gasket only by price | Low-cost foam may lose recovery faster in harsh conditions | Match material to temperature, UV, moisture, and compression needs |
| Ignoring compression percentage | Too little or too much compression can both fail | Define door gap and target compression |
| Assuming a new gasket means long-term sealing | Compression set and stress relaxation develop over time | Review aging and recovery |
| Using one latch on a large flexible door | Pressure may be uneven | Check door stiffness and latch positions |
| Ignoring hinge side | Latch side may seal while hinge side remains loose | Check full perimeter compression |
| Poor corner joining | Corners are common leak paths | Use continuous gasket design or controlled corner joints |
| Treating gasket as cosmetic trim | Installation defects create leak paths | Add gasket placement and compression checks to QC |
15. Practical Rule of Thumb
A gasket is not a magic seal. It is a compressible spring in a metal door system. Good sealing comes from the whole chain: material, compression, recovery, door stiffness, latch pressure, hinge alignment, installation quality, and field environment.
FAQ
What is compression set in a foam gasket?
Compression set is the permanent thickness loss after a gasket has been compressed. A high compression set means the gasket may not rebound enough to keep sealing pressure.
Why does an enclosure gasket leak after working at first?
The gasket may have aged, taken compression set, lost adhesion, or stopped receiving even pressure because the door, hinge, or latch shifted.
Is a softer gasket always better?
No. A very soft gasket may close easily, but it may not provide stable long-term sealing force. The gasket must match the door gap, latch force, and environment.
Is FIPFG better than a strip gasket?
Not automatically. FIPFG can create a continuous formed gasket path, but it still depends on material, dispensing control, curing, bead geometry, adhesion, and door compression.
How do I choose a foam gasket for an outdoor electrical enclosure?
Start with the installation environment, door size, door gap, latch and hinge layout, UV and heat exposure, rain or wash-down risk, cable-entry sealing, and the target protection requirement. Then choose the material and gasket geometry together with the door structure.
Can a gasket restore a poor door design?
Not fully. If the door is warped, the flange is uneven, or the latch pressure is poor, even a good gasket may leak.
What should I send for gasket selection?
Send the enclosure drawing, door gap, gasket path, lock and hinge layout, installation environment, protection target, door opening frequency, and any photos of leakage or gasket flattening.
Discuss Your Enclosure Gasket Requirements
If you are choosing a gasket for an outdoor or custom electrical enclosure, send the door drawing, gasket path, lock and hinge layout, expected environment, and protection requirement. The sealing decision should be based on compression, aging, and door structure together.
