DRAWING-BASED OEM PROJECT

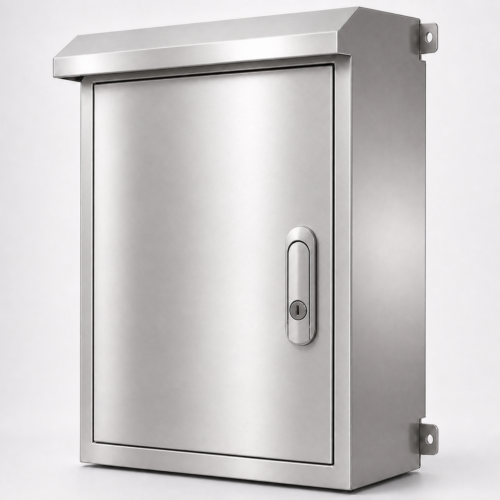

IP66 Electrical Enclosures for gasket compression, penetration identity and verification scope
IP66 is a target for the finished assembly. The empty metal body alone cannot prove the result after doors, glands, filters, windows and field work are added.
The approved drawing sets the overall dimensions, door arrangement, mounting method and usable access.
Review the door compression, flange, cable entries, openings and water direction as one boundary.
Choose the material and finish after reviewing corrosion, coating edges, hardware and contact compatibility.
State the exact target standard or edition, installation direction and evidence required.
Agree the pre-test checks, sample configuration, acceptance record and third-party requirements.
List what FN fits, what is supplied loose, what the customer supplies and what is installed in the field.
Best fit
- The installed equipment needs a stronger water-jet-oriented review than a basic outdoor box.
- Every opening and fitted component can be defined before fabrication.
- The customer can state the exact standard, configuration and evidence required.
Not the default scope
- Using IP66 as an unconditional marketing label without an agreed test configuration.
- Adding unverified glands, fans, windows or field holes after the enclosure is reviewed.
- Assuming material thickness or stainless steel grade alone creates IP66 performance.
DESIGN INPUTS
Define the Complete IP66 Water Boundary
List every closure and penetration on the finished assembly before selecting the representative verification configuration.

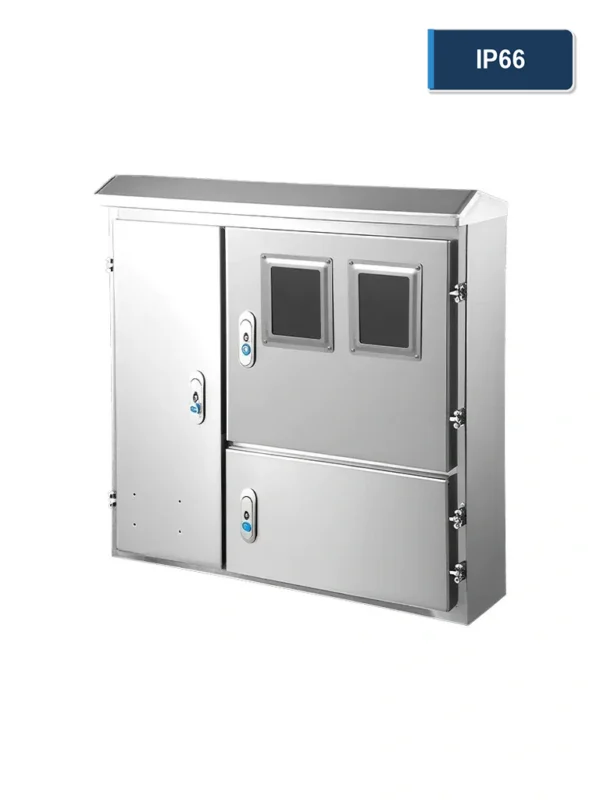

| Project variable | Decision required |
|---|---|
| Protection basis | Exact target standard/edition, installed orientation and required evidence |
| Door boundary | Flange geometry, gasket path, compression, hinge, lock points and door stiffness |
| Cable entries | Gland/conduit models, hole schedule, gland plate, spare-entry closure and field responsibility |
| Other interfaces | Windows, fans, filters, vents, handles, drains and every fastened penetration |
| Water path | Jet direction, roof/edge geometry, drainage, mounting and nearby surfaces |
| Material and finish | Corrosion exposure, coating edges, stainless grade, hardware and contact compatibility |
| Inspection/test scope | Pre-test checks, sample configuration, acceptance record and third-party need |
| Supply boundary | Which parts are fitted by FN, supplied loose, customer-supplied or installed in the field |
Decisions that shape the IP66 boundary
Exact target standard/edition, installed orientation and required evidence
Flange geometry, gasket path, compression, hinge, lock points and door stiffness
Gland/conduit models, hole schedule, gland plate, spare-entry closure and field responsibility
Windows, fans, filters, vents, handles, drains and every fastened penetration
ENGINEERING & QUALITY
Approve the Finished Configuration and Evidence Scope

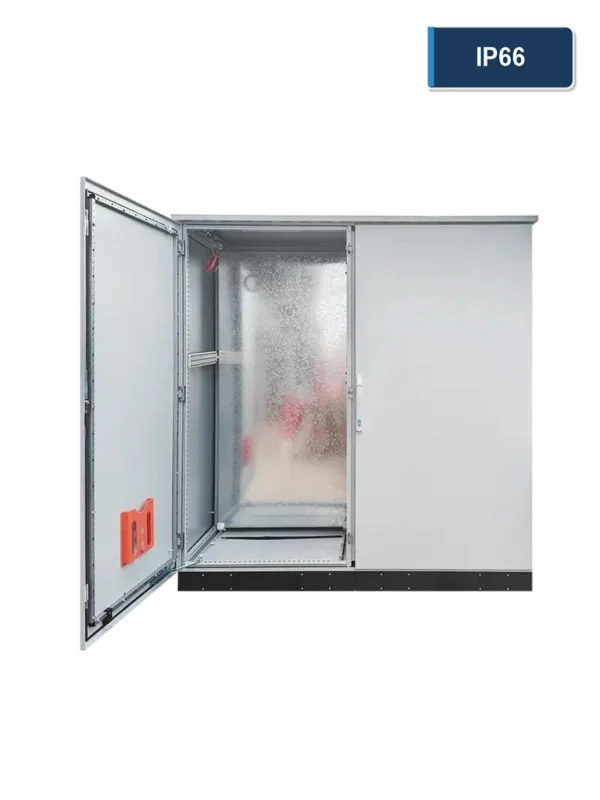

The inspected or tested assembly must retain the door, gasket, locks and penetrations named in the project brief.
IP66 configuration approval path
- 01Define the IP66 target and evidence boundary.The target standard or customer requirement and evidence boundary are recorded.
- 02Freeze the complete opening and component schedule.Every opening and fitted component is listed before the drawing is released.
- 03Review door, gasket, lock and flange geometry as one seal.Door, gasket, lock, hinge and flange requirements are checked together.
- 04Check material, joining, drainage and distortion risks.Cable glands, conduit, windows, fans, filters and drains are reviewed with the sealing boundary.
- 05Agree sample, inspection and test configuration before production.Material, finish, corrosion exposure and the sample or test configuration are agreed.
- 06Record the approved configuration, revisions and packaging.The approved configuration, revision, packaging and document scope are recorded.
Finished-assembly evidence points

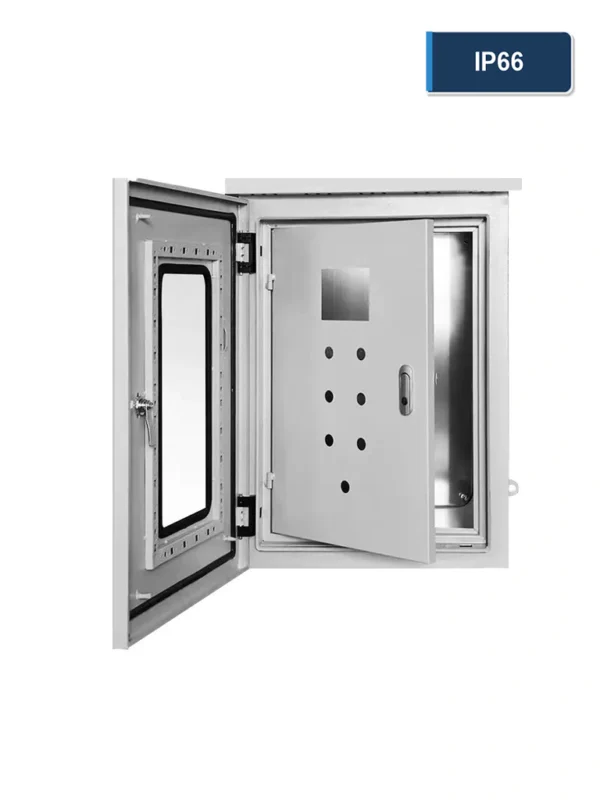

Check flange geometry, gasket path, compression, hinge position and lock engagement.
Confirm glands, windows, fans, filters, vents, drains and other penetrations.
Review seams, drainage, jet direction, mounting and exposed finished interfaces.
Record the approved configuration, test scope, photos, labels and drawing revision.
PROJECT FAQ
Send the IP66 Configuration and Verification Brief
Name the required evidence and every fitted interface before quotations are compared.
IP66 Electrical Enclosures project data and evidence status
| Field | Buyer-facing value | Status |
|---|---|---|
| Manufacturable size | Confirm overall dimensions, usable depth, door and flange geometry, installed orientation, and required evidence from the approved project drawing. | Project-defined |
| Material and thickness | Carbon steel, galvanized steel, stainless steel, aluminum, or project-specified material; exact thickness remains on the drawing. | Conditional scope |
| Surface treatment | State the exposure, material grade, coating or visible-finish requirements, plus any cleaning and touch-up expectations, in the RFQ. | Quote input |
| Fabrication route | The route follows flange geometry, gasket path, compression, hinge, lock points and door stiffness; fixed equipment specifications are not published. | Scope confirmed later |
| Joining and sealing | Define the continuous gasket path, door compression, flange interfaces, penetrations, and sealing method on the approved drawing. | Drawing decision |
| Tolerance and inspection | Door alignment, flange and gasket continuity; acceptance method must be agreed. | Acceptance input |
| Tests and files | The record should cover gasket compression, penetration details, and the agreed verification scope. No certification is claimed. | Conditional evidence |
| First article and batches | Agree sample, inspection and test configuration before production. | Customer requirement |
| Packaging and destination | Record the approved configuration, revisions and packaging. | Delivery input |
| Project photographs | No approved public IP66-oriented assembly customer-photo set is currently available. | Public evidence unavailable |
| Drawing examples | No anonymous IP66-oriented assembly drawing case has been cleared for public release. | Public evidence unavailable |
| BOM and assembly boundary | Which parts are fitted by FN, supplied loose, customer-supplied or installed in the field | Must be defined |
| Inquiry description | Describe continuous sealing boundary, door compression, entry components, openings, water direction and agreed verification; verified family inquiry data has not been published. | Sales confirmation needed |
| Proven applications | Selection contexts are shown, but no approved completed-project list is public for this IP66-oriented assembly. | Public evidence unavailable |
IP66 Electrical Enclosures buyer questions
Does IP66 apply to the empty enclosure?
No. The protection target belongs to the finished assembly and its tested or agreed configuration, including every fitted interface.
Is FN currently IP66 certified?
No current company or product certification is claimed. A project can define its target and evidence scope, but it must not be presented as an existing certificate.
Can field drilling affect the result?
Yes. New holes, raw edges, unsuitable glands or poor closure of unused entries can change the water and dust boundary.
Can fans or filters be used?
Only after reviewing the rated components, openings, rain direction, maintenance and the evidence boundary. They are not neutral additions.
What should a test configuration include?
The enclosure orientation, doors, locks, gasket, glands, windows, fans, filters, drains and all other penetrations that represent the supplied assembly.
Is thicker sheet automatically better for IP66?
No. Stiffness can matter, but sealing geometry, compression, openings, workmanship and configuration control are equally important.
How are custom sizes handled?
Dimensions are quotation inputs. Large or unusual structures need review for door deflection, gasket compression, handling and test configuration.
What records should be agreed?
Drawing revision, component list, inspection points, configuration photos, test report scope and third-party involvement should be stated before order.
