Start with the environment, not the grade label. Stainless makes sense when moisture, salt, washdown, cleaning chemicals, or visible-finish requirements make painted steel a poor fit.
A stainless sheet does not protect a rough weld, carbon-steel screw, unsealed cutout, weak gasket path, or horizontal ledge that traps water. Those details belong in the drawing and RFQ.
Choose Stainless Steel for the Actual Environment
01 · ENVIRONMENT
Match the grade to the exposure
Define indoor or outdoor use, humidity, chlorides, cleaning chemicals, washdown method, temperature, drainage, and expected service conditions before comparing SS201, SS304, SS316, or SS316L
02 · LOCAL RISK POINTS
Design out the weak spots
Specify weld cleanup, cutout edge treatment, hardware materials, gasket contact, and drainage. Crevices, mixed metals, and water traps can become the first problem.
03 · SURFACE PROTECTION
Keep the finish intact through delivery
Confirm grain direction, visible-face acceptance, weld blending, protective film, accessory separation, corner protection, and crate method. A cross-grain scratch is hard to hide on a brushed door.
Best suited for
- Outdoor or humid installations where corrosion resistance justifies the material cost
- Coastal, chloride, washdown, or chemical-cleaning projects after grade review
- Food-processing and appearance-sensitive housings with defined cleanability and finish requirements

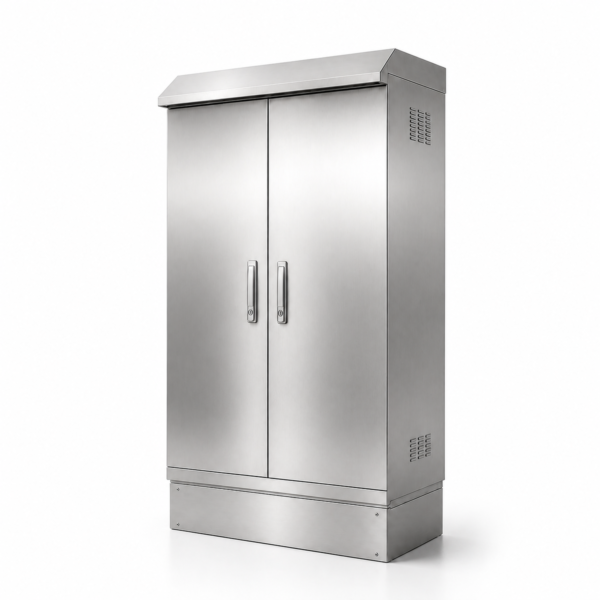

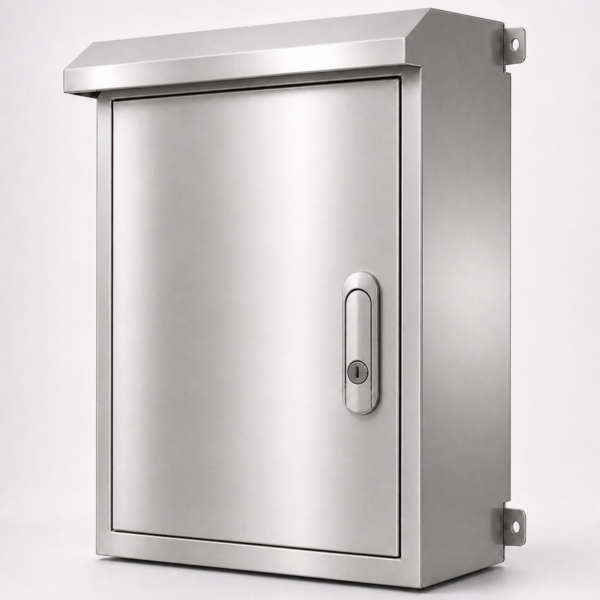

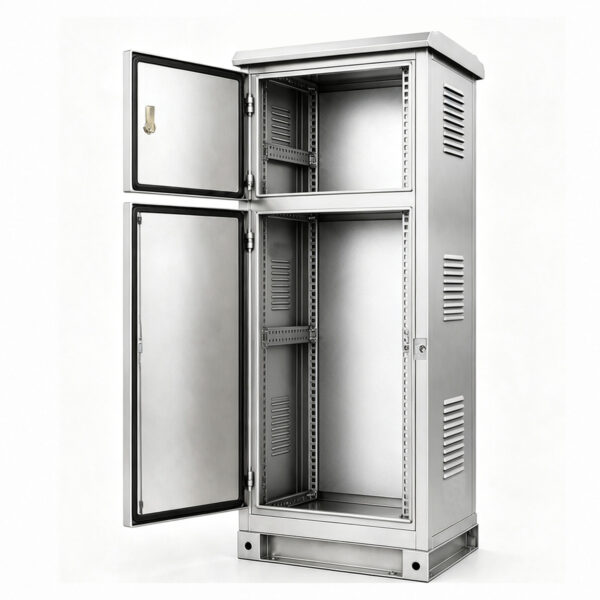

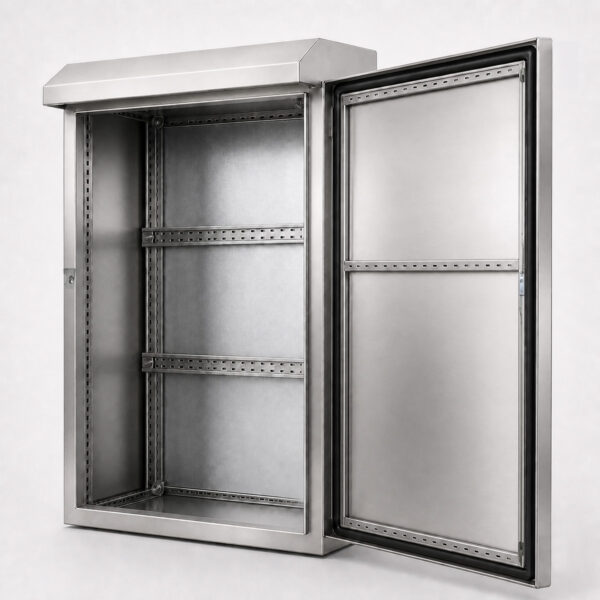

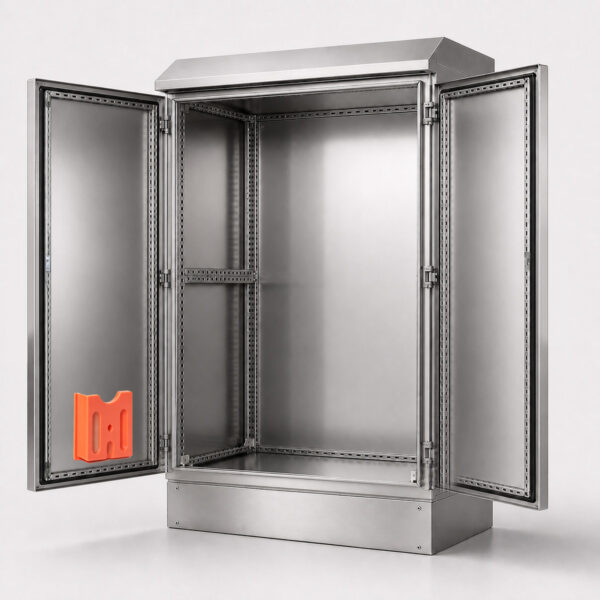

- Wall-mounted boxes, floor-standing cabinets, junction boxes, and equipment housings built from drawings
Confirm before ordering
- Exposure, salt or chlorides, cleaning chemicals, washdown method, temperature, and drainage
- Grade, thickness, finish direction, weld cleanup, and passivation or pickling if required
- Cutouts, accessory interfaces, hardware, gasket, mounting, and supplied loose parts
- Protection target, inspection documents, destination, and packing method
Specify before fabrication
Stainless Steel Grades and Custom Design Options
SS304 or SS316 is not a complete specification. Define exposure, sheet thickness, finish, grain direction, weld treatment, openings, hardware, gasket, drainage, visible-face criteria, and field-installed accessories. Use the table as an RFQ checklist, not a universal performance guarantee.
Production and quality
Stainless Steel Enclosure Manufacturing and Quality Control
Stainless projects require control of the approved grade, surface direction, welding and grinding treatment, opening locations, hardware match, handling, inspection, and packaging.
01 ·
Review
Confirm grade, finish, structure, openings, hardware, environment, and acceptance requirements.
02 ·
Manufacture
Fabricate, weld, clean, grind, and prepare surfaces according to the confirmed production basis.
03 ·
Inspect
Check material, dimensions, openings, door and gasket fit, hardware function, and visible surface condition.
04 ·
Protect
Apply film or wrapping, separate accessories, protect doors and corners, and prepare agreed export packaging.
Agree stainless-specific controls
Production controls
- Material grade and stainless-compatible hardware
- Weld cleanup, grinding direction, finish, and protective film
- Cut-outs, cable entry, mounting plate, gasket, and drainage details
- Clean handling and separation from contamination sources
Inspection and shipment
- Material and visible finish check
- Dimensions, openings, door, lock, hinge, gasket, and accessory fit
- Scratch, corner, film, hardware, and packing checklist
- Inspection records or packing photos when agreed for the order
Quotation questions
What to Send for a Stainless Steel Enclosure Quote
Send these first
- Dimensioned drawing; or an annotated sketch, sample photos, and overall dimensions
- Indoor or outdoor location, humidity, salt or chlorides, cleaning chemicals, washdown method, and temperature
- Grade, thickness, finish, grain direction, weld cleanup, and passivation or pickling if required
- Cutouts, accessory interfaces, mounting, hardware, gasket, drainage, and quantity
- Target protection level, required tests or documents, destination, and packing method
Stainless Steel Electrical Enclosure FAQs
Can FN manufacture stainless steel enclosures from our drawings?
Yes. FN can manufacture stainless enclosure bodies from confirmed drawings, samples, photos, sketches, or project specifications. The production drawing and specification are confirmed before manufacturing.
Should the project use SS304 or SS316?
SS304 is commonly discussed for humid, outdoor, or general corrosion-aware projects. SS316 or SS316L may be considered for coastal, chloride, chemical, washdown, or welded corrosion-risk conditions. Final selection depends on the real environment.
Can custom openings be completed before shipment?
Cable entries, gland plates, fan or filter openings, windows, connector holes, displays, meters, mounting holes, and other drawing-defined cut-outs can be prepared within the confirmed scope.
How are stainless surfaces protected for export?
Depending on the order, packaging may include protective film, wrapping, separated parts, corner and door protection, pallets, crates, labels, accessory checks, and shipment-specific packing methods.
Do custom openings affect the protection target?
Openings and field modifications can affect the finished boundary. Plan cut-outs, glands, accessories, gasket contact, installation, testing, and documentation as one system when protection performance matters. Any third-party certification or formal report must be confirmed separately for the specific project.
