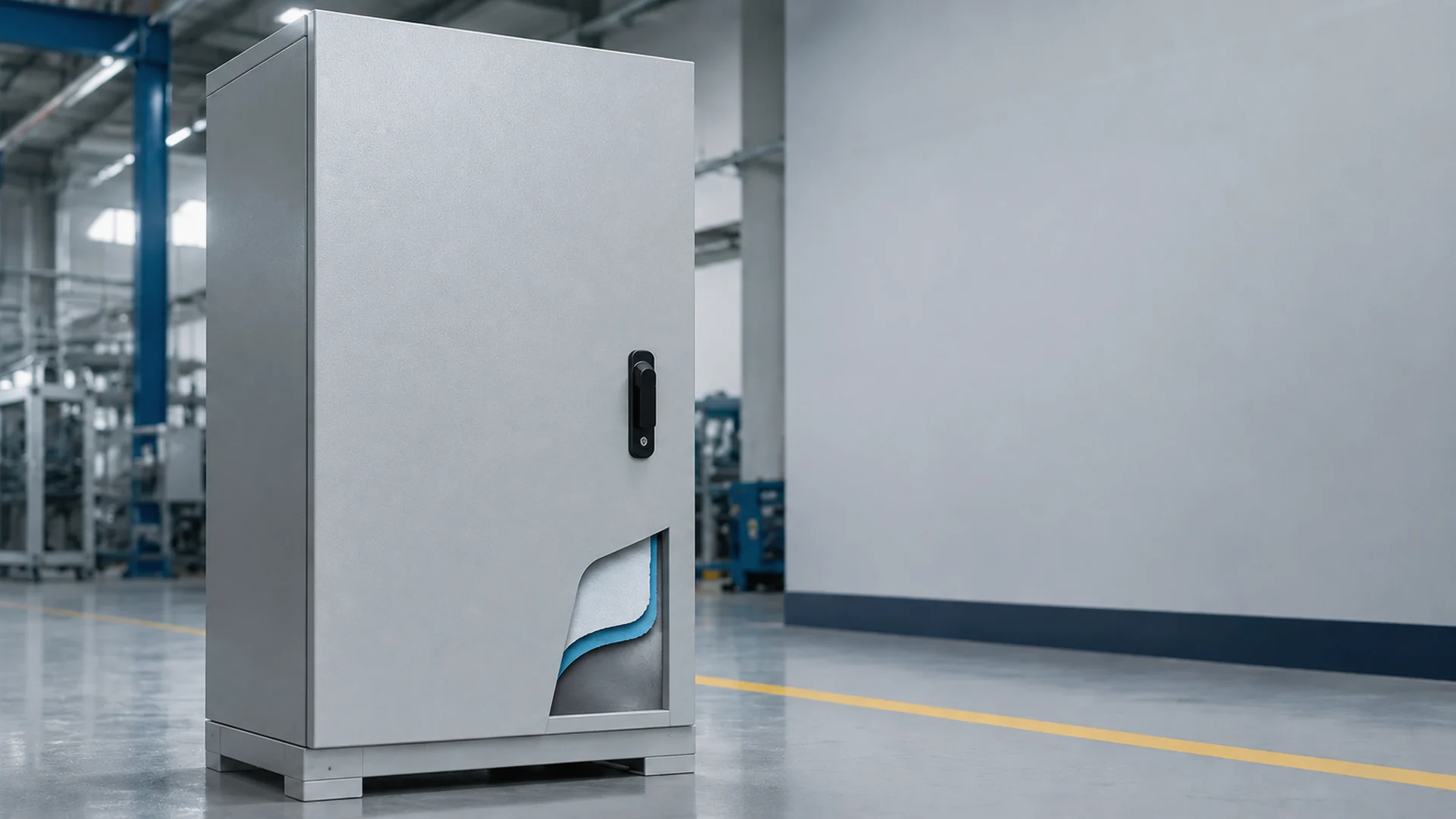

If you are buying a powder-coated steel enclosure, here is the short answer: pretreatment matters because powder is only the top layer. The steel underneath still has to be cleaned and chemically prepared so the coating can bond to it and help slow corrosion at the interface.

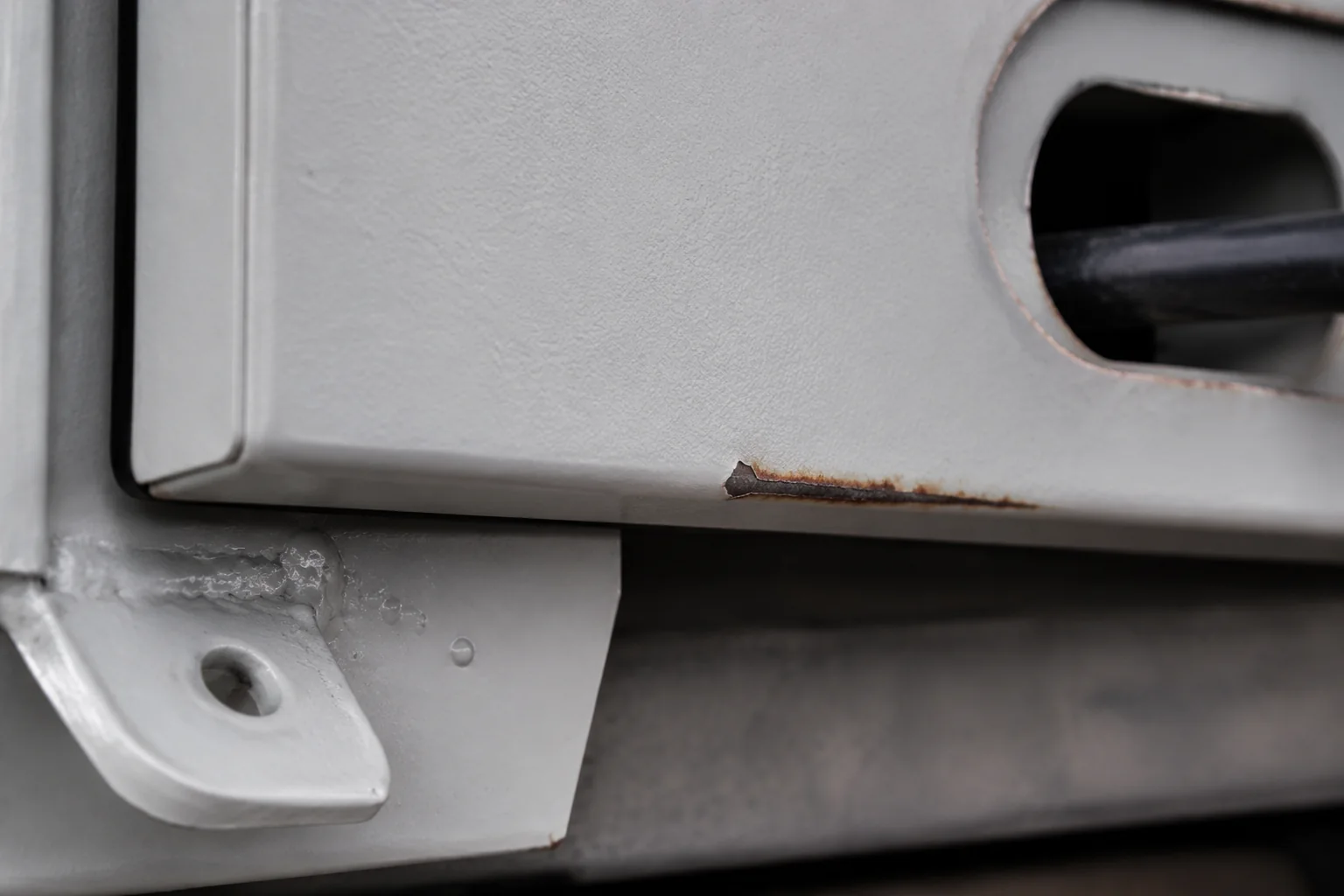

Picture the failure path rather than the showroom finish. A scratch, exposed cut edge, weld defect, or poorly sealed seam can give moisture a route to the steel. If contamination remains or the conversion treatment is weak, corrosion can creep beneath a coating that still looks sound nearby. More powder on top does not correct that hidden interface.
The practical answer is simple: do not ask only whether an enclosure is powder coated. Run the 4C Pretreatment Check: Clean, Convert, Cure, Confirm. [1][2]
RAL tells you the color. 4C tells you whether the coating system is credible: Clean, Convert, Cure, Confirm.
Whenever a quote or drawing says only “powder coated” or lists a RAL color without process details, run the 4C check before approving the sample, specification, or purchase order.
You may also see the same product described as a powder-coated metal cabinet or a powder-coated electrical enclosure. The wording changes by market, but the buying question does not: what is underneath the powder, and how was that interface controlled?
What is the 4C Pretreatment Check?
The 4C check turns a vague finish description into four questions a buyer, engineer, or quality reviewer can actually use:
| 4C check | The question to ask | Useful evidence to request |
|---|---|---|
| Clean | Which substrate is being coated, what contamination is present, and how is it removed? | Substrate confirmation, cleaning-stage description, rinse-control summary |
| Convert | What conversion treatment was used, and why is it compatible with the substrate and exposure conditions? | Pretreatment route, chemistry or process family, control points, compatibility rationale |
| Cure | How were film thickness, part metal temperature (PMT), and cure time controlled on the actual enclosure? | Powder technical data sheet, agreed film thickness range, cure record or profile |
| Confirm | What inspection or test evidence supports the completed coating system? | Appearance and thickness records, adhesion criteria, project-specific corrosion evidence, traceability |
The first two Cs examine pretreatment directly. Cure and Confirm are included because a buyer cannot judge pretreatment in isolation after the powder covers it. The coating system is credible only when the supplier can connect surface preparation, powder application, curing, inspection, and the intended environment.
What does pretreatment actually do?
Pretreatment is the set of preparation steps between steel fabrication and powder application. In 4C terms, it mainly covers Clean and Convert. It normally performs four jobs:
- Removes contamination such as oil, grease, salts, dirt, oxides, and residues from punching, bending, welding, cutting, or handling.
- Creates a chemically active surface that the melted powder can wet and bond to.
- Creates a conversion layer through a qualified treatment such as iron phosphate, zinc phosphate, or nanoceramic chemistry.
- Helps slow corrosion at the interface, so a small coating defect is less likely to lead to rapid under-film corrosion.
This is why pretreatment should not be described as “just washing.” A technical enclosure coating line typically separates cleaning, rinsing, conversion treatment, drying, powder application, and curing. The exact number of tanks and controls varies by substrate, chemistry, line design, and performance requirement. [1][2]
| Process stage | What it protects against | What a weak process can look like |
|---|---|---|
| Degreasing and cleaning | Oil, grease, salts, shop dirt, welding and forming residues | Fish-eyes, craters, poor wetting, peeling |

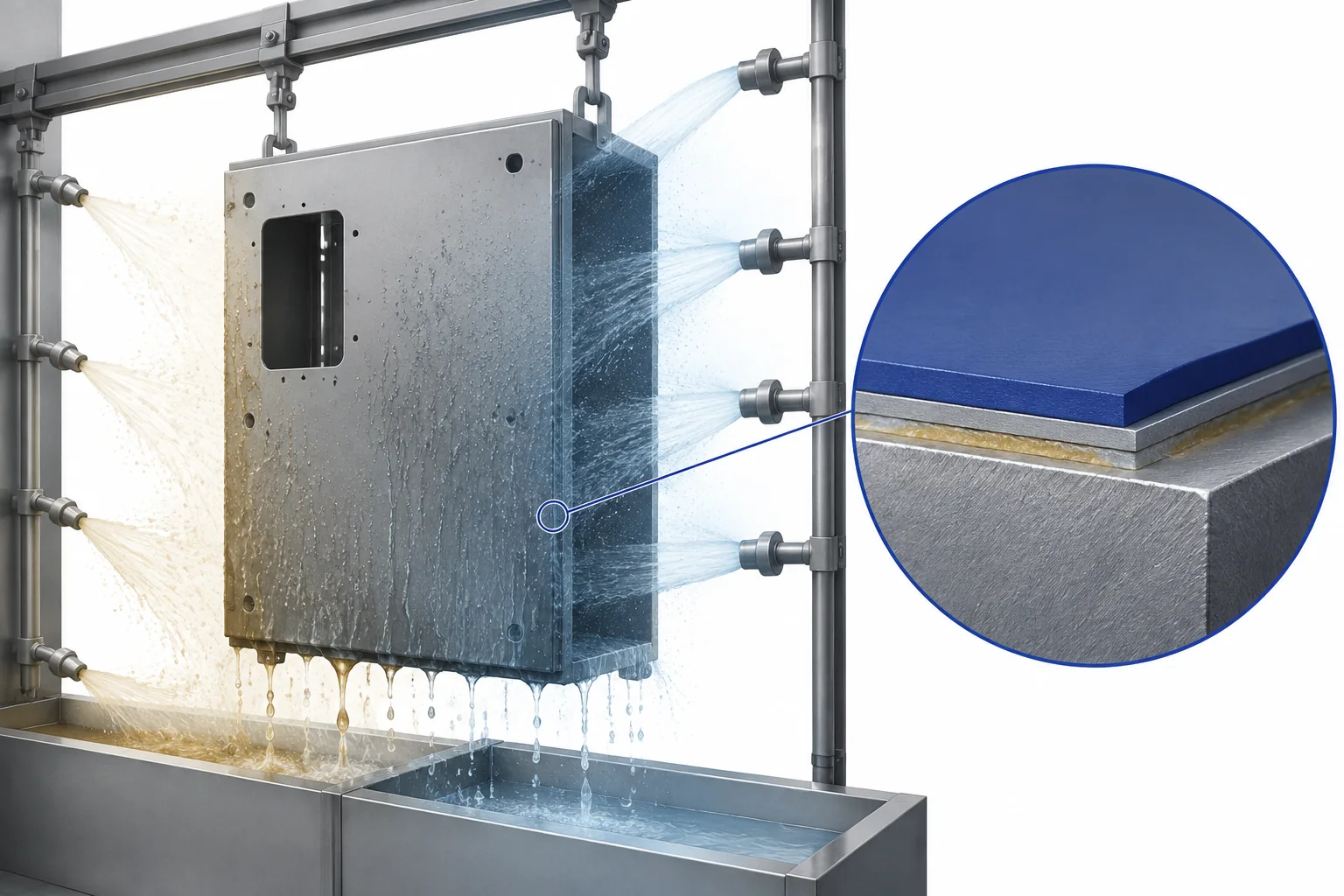

| Rinsing | Chemical and salt carry-over | Staining, contamination of the next stage, inconsistent adhesion |
| Conversion treatment | Weak adhesion at the interface and early corrosion | Blistering, corrosion creep from edges, under-film rust |

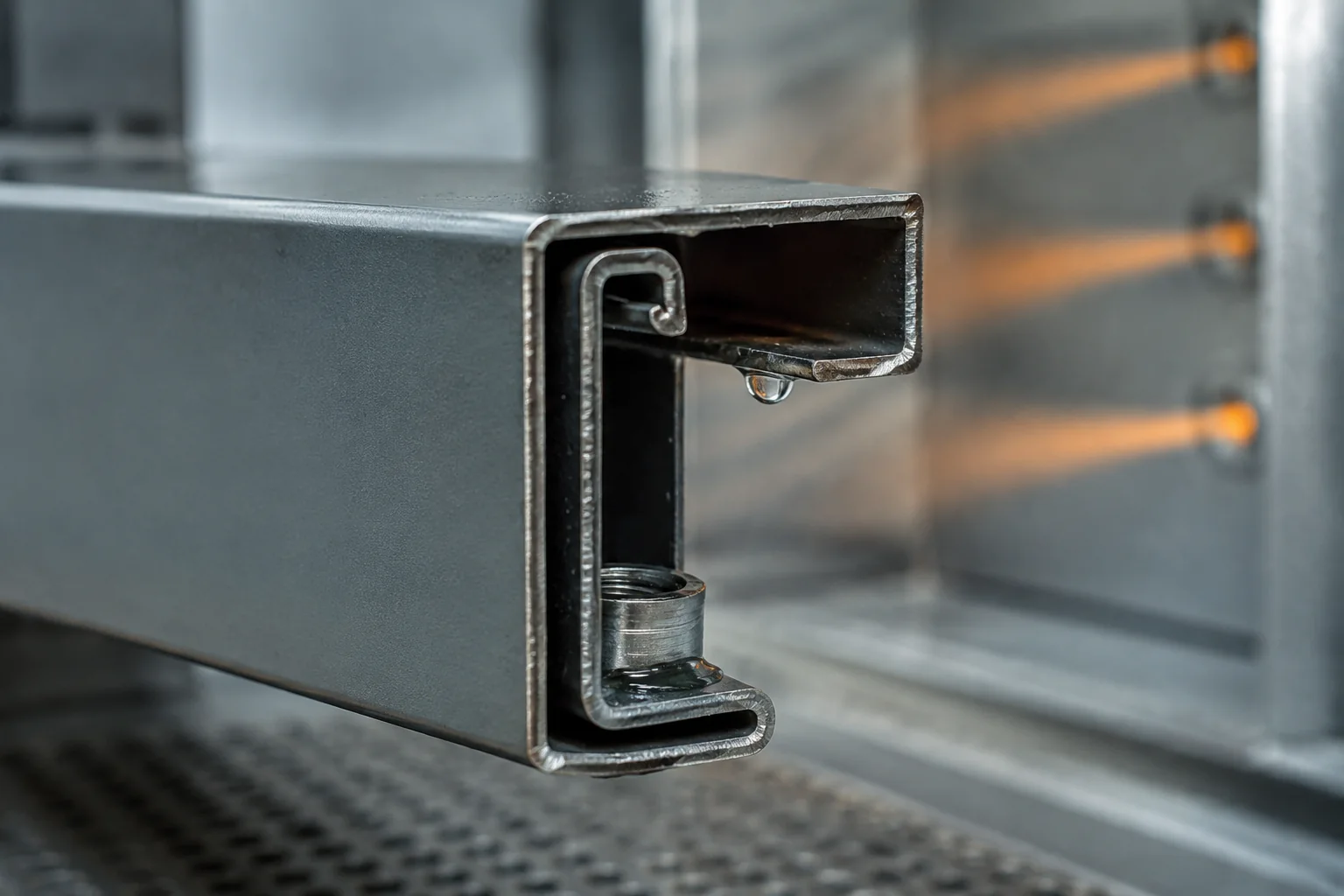

| Drying before powder | Moisture trapped under the finish | Pinholes, bubbling, cure defects |
| Controlled curing | Under-cured or over-cured film | Softness, poor chemical resistance, cracking, inconsistent performance |
Why is powder coating alone not enough?

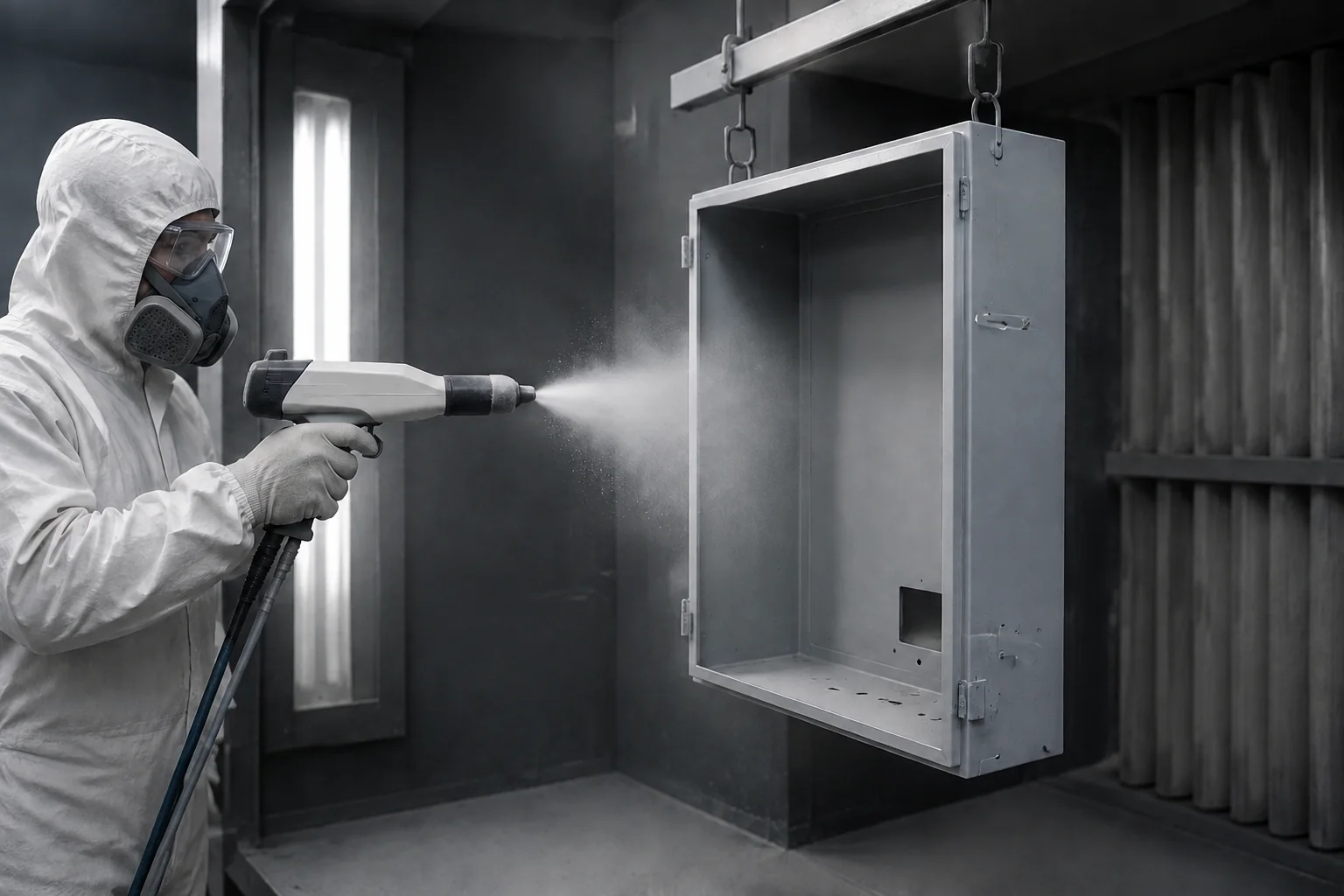

Powder coating is a dry finishing process. The powder is electrostatically applied and then heated so it melts and cures into a continuous film. That film can be durable, but it cannot reliably compensate for oils, oxides, salts, or fabrication residues left on the steel.
Think of enclosure durability as a chain:
steel substrate → clean surface → conversion layer → powder film → cured coating → enclosure design and maintenance
If the second or third link is weak, adding more powder does not automatically fix the problem. A thicker topcoat may hide a surface issue during visual inspection while leaving weak adhesion and corrosion pathways unresolved.

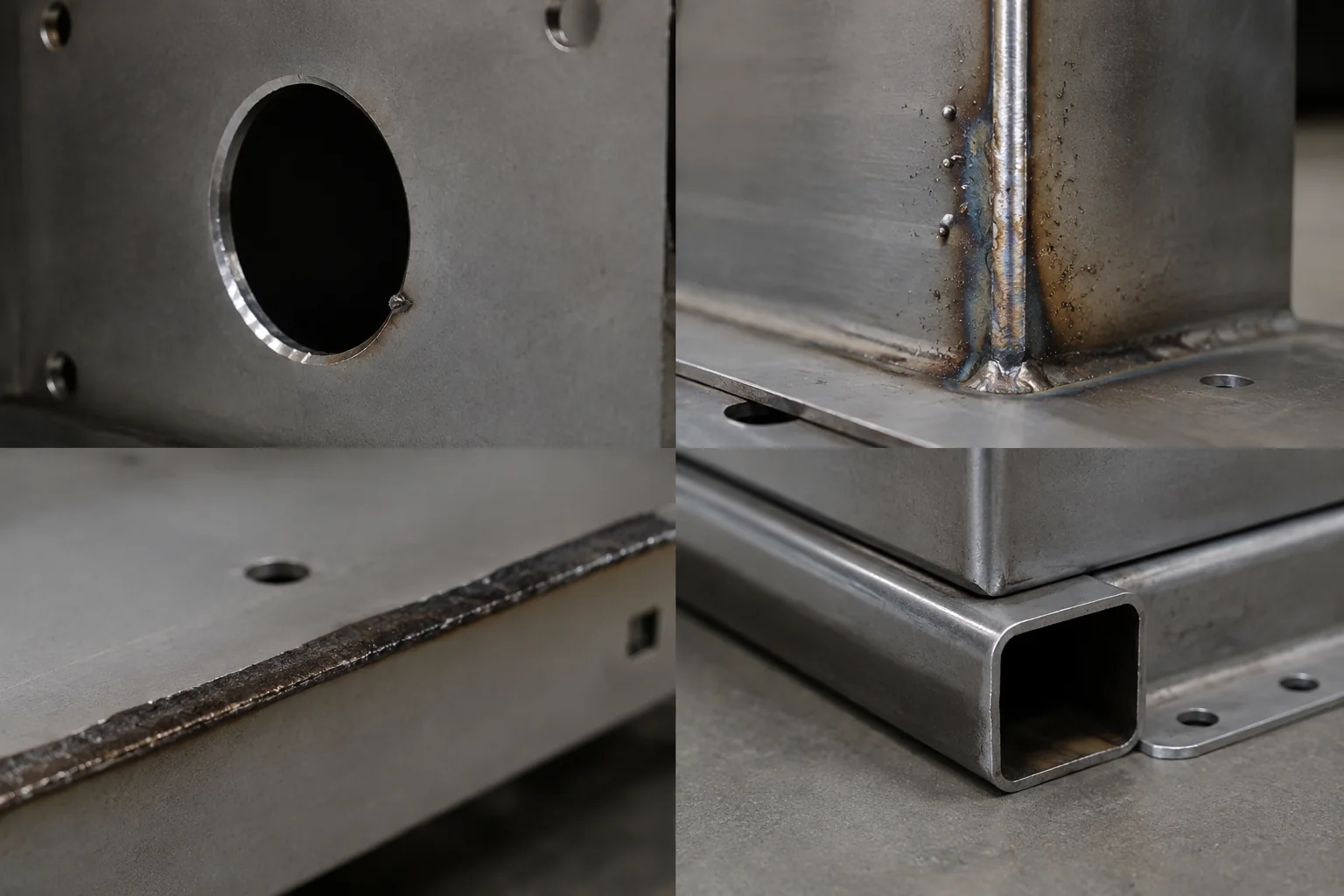

Fabricated enclosures deserve extra attention because sheet-metal parts have many features that can hold contamination or remain vulnerable after coating:
- welded corners and heat-affected areas;
- punched or laser-cut edges;
- threaded holes and grounding points;
- door flanges and gasket lands;
- internal bends and drainage points;
- lifting points, brackets, and mounting hardware.
A practical way to discuss the risk with a supplier is to ask: “Where does your process control the places that are hardest to clean and hardest to coat?” That is the Clean/Convert part of 4C, and it is more useful than asking for a generic claim such as “high-quality powder coating.”

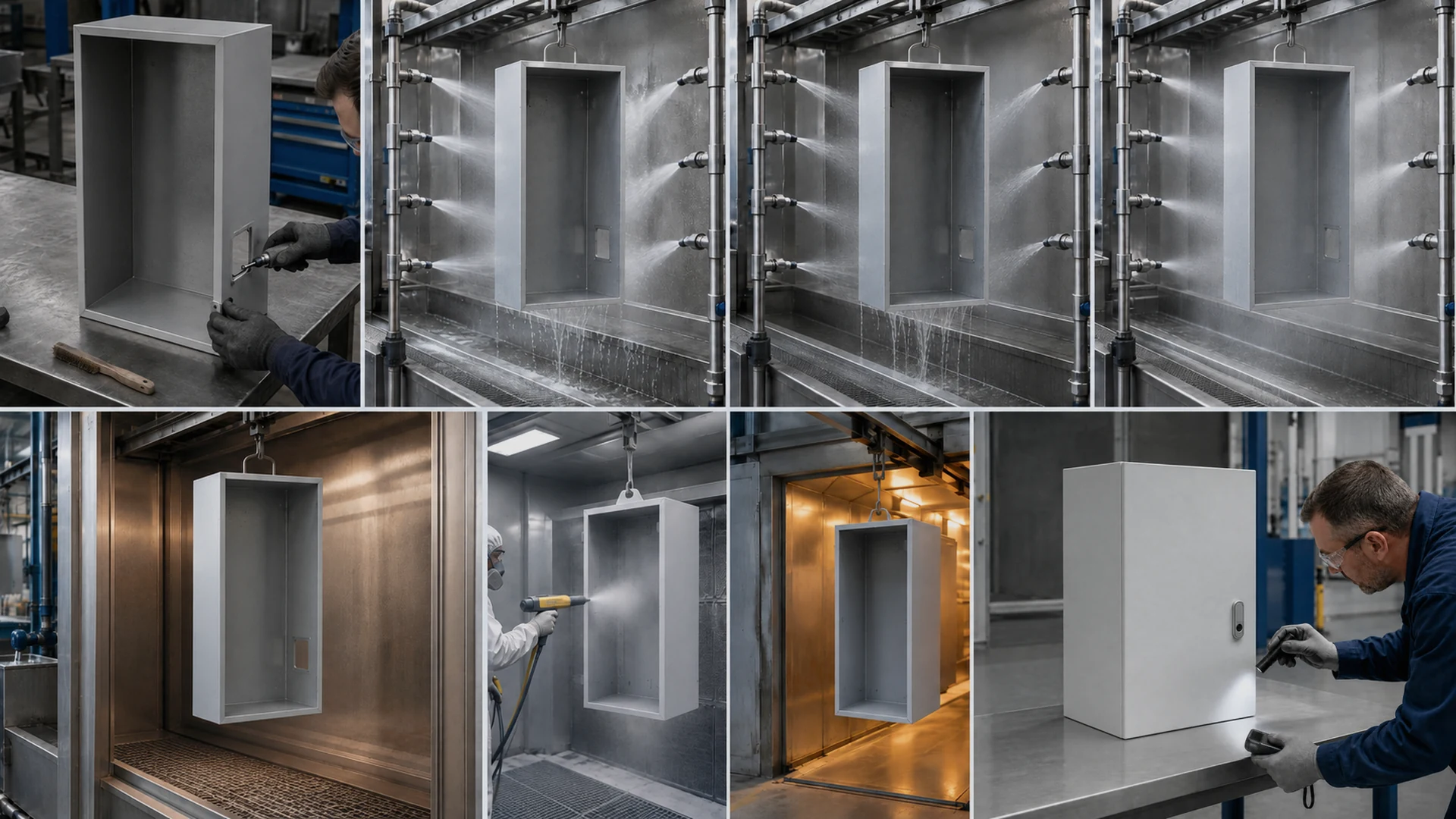

What is the typical pretreatment sequence for a steel enclosure?
A typical sequence looks like this, although the actual line may use different chemistry and a different number of stages:
- Incoming inspection — confirm the substrate, surface oil, weld quality, burrs, and visible contamination.
- Alkaline cleaning or degreasing — remove organic and inorganic soils from the steel.
- Rinse — prevent cleaner carry-over into the conversion stage.
- Conversion treatment — form the selected conversion layer using iron phosphate, zinc phosphate, nanoceramic, or other qualified chemistry.
- Final rinse and drying — remove residues and moisture before powder application.
- Powder application — apply the specified powder to the prepared surface.
- Curing — bring the metal part to the specified temperature for the time required by the powder manufacturer.

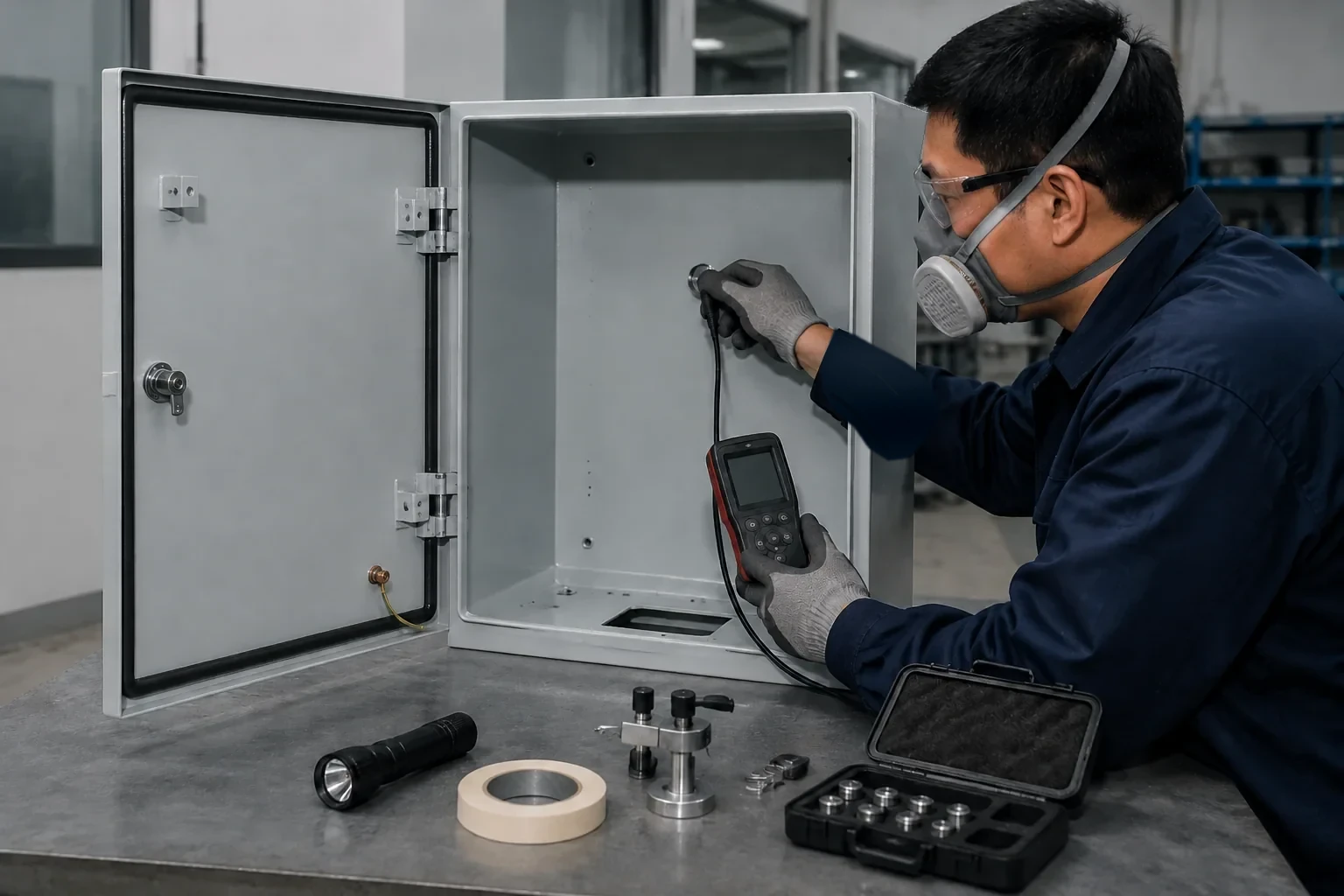

- Inspection and handling — check appearance, film thickness, adhesion, critical contact areas, and damage caused by handling.
The important point is not the number of stages by itself. It is whether the supplier can connect each stage to the substrate and the environment. For example, a process designed for clean indoor sheet metal is not automatically the right process for a coastal enclosure with condensation, salt, or chemical exposure. [1]
Do not score a supplier simply by counting tanks or stages. Map the sequence back to 4C: stages 1–5 should explain Clean and Convert, stages 6–7 should explain Cure, and stage 8 should provide Confirm evidence. A shorter, well-controlled process can be more credible than a longer process the supplier cannot control or document.

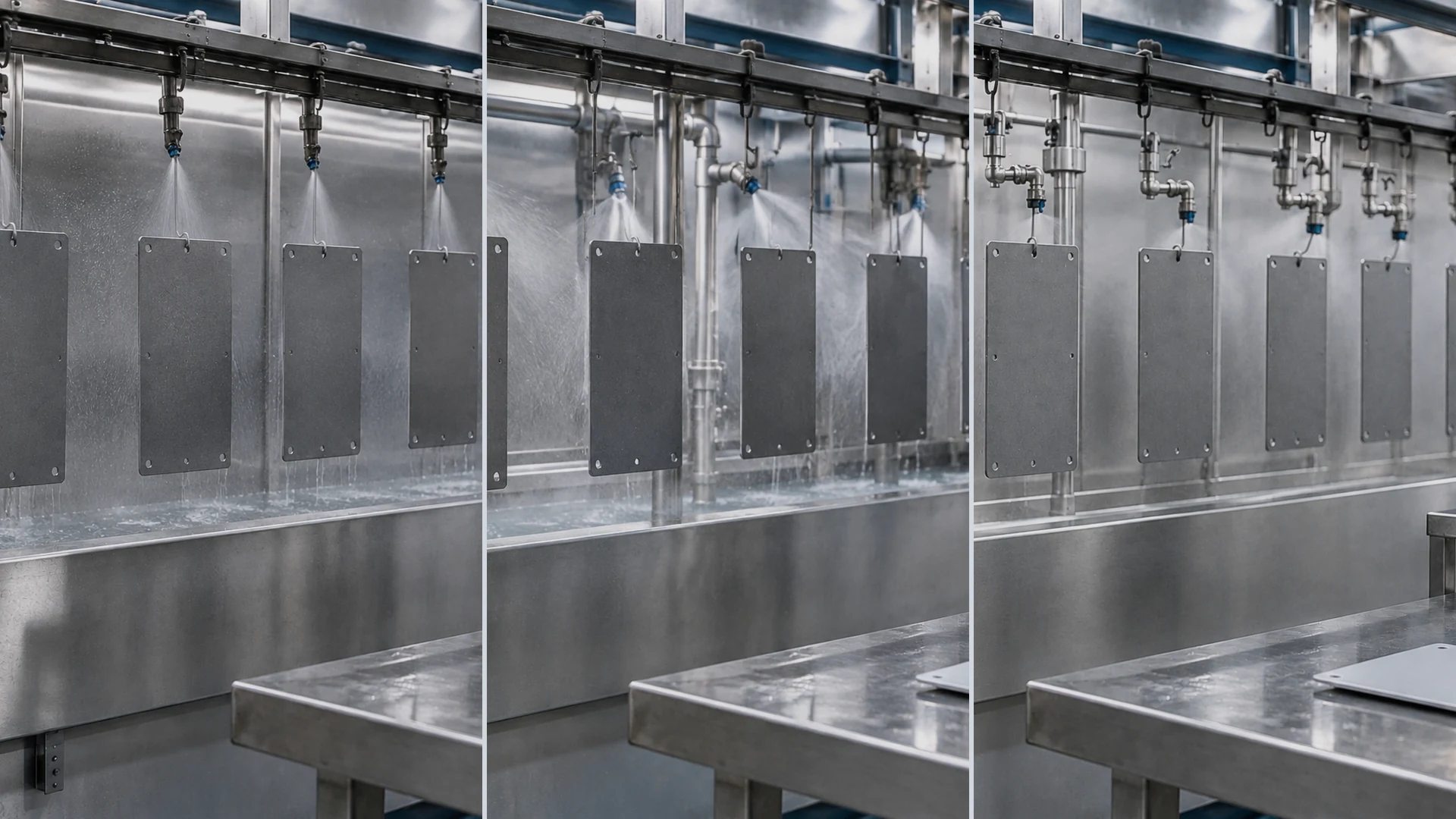

Iron phosphate, zinc phosphate, or nanoceramic: which is better?
There is no universal winner. The correct choice depends on the steel condition, powder system, installation environment, required corrosion performance, environmental compliance and wastewater requirements, and the supplier’s ability to control the process.
| Pretreatment route | Where it may fit | What the buyer should confirm |
|---|---|---|
| Iron phosphate | General industrial work and many standard powder-coating lines | Whether it is qualified for the substrate and environment; how the line controls cleaning, rinse quality, and coating weight |
| Zinc phosphate | Applications where a higher corrosion-protection margin is required | Chemical control, sludge and wastewater management, compatibility with the powder system, and the test methods and acceptance criteria |
| Nanoceramic or zirconium-based treatment | Modern thin-film conversion systems where process control and environmental objectives support the choice | The actual chemistry, line controls, supplier data, and test evidence for the specified substrate |
| Primer plus powder topcoat | Harsh outdoor, coastal, chemical, or high-corrosivity applications where an additional barrier is justified | Whether primer/topcoat compatibility, application, curing, and testing are specified as one system rather than as two unrelated products |
Henkel describes iron phosphate as a conversion treatment that can improve paint adhesion and corrosion protection, while nVent HOFFMAN describes iron phosphate, zinc phosphate, and nanoceramic routes as commonly used industry options with different trade-offs. Those sources do not justify treating one chemistry as automatically correct for every steel enclosure. [1][2]
Also confirm the substrate. Carbon steel, galvanized steel, and stainless steel do not have the same surface chemistry or preparation requirements. A process that works well on one substrate may require a different cleaner, activation step, conversion chemistry, or masking approach on another.

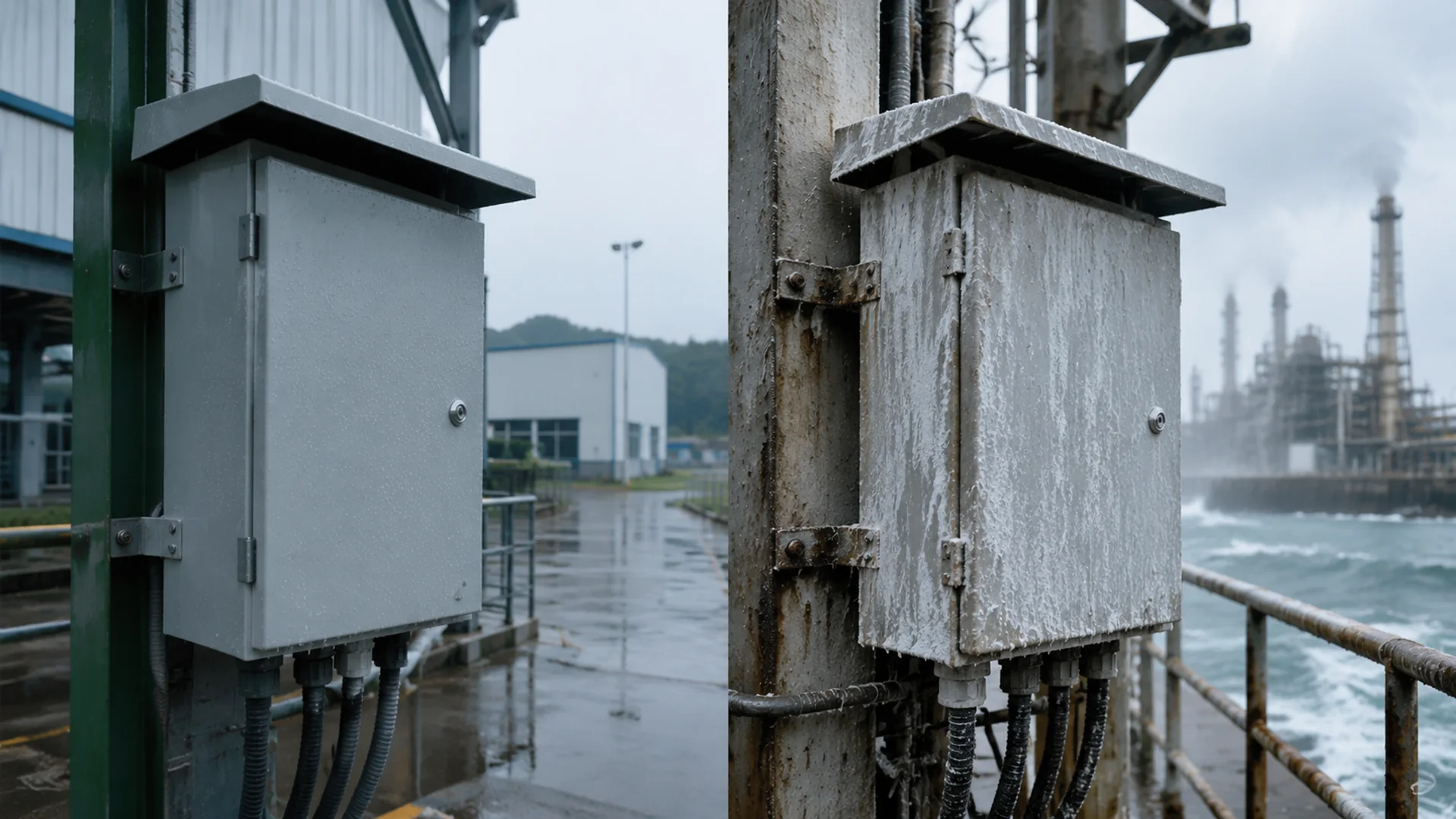

What changes when the enclosure is installed outdoors?
Outdoor exposure changes the coating conversation from “what color do you want?” to “what corrosion and weathering system does the location require?”
| Installation condition | Questions to resolve before production |
|---|---|

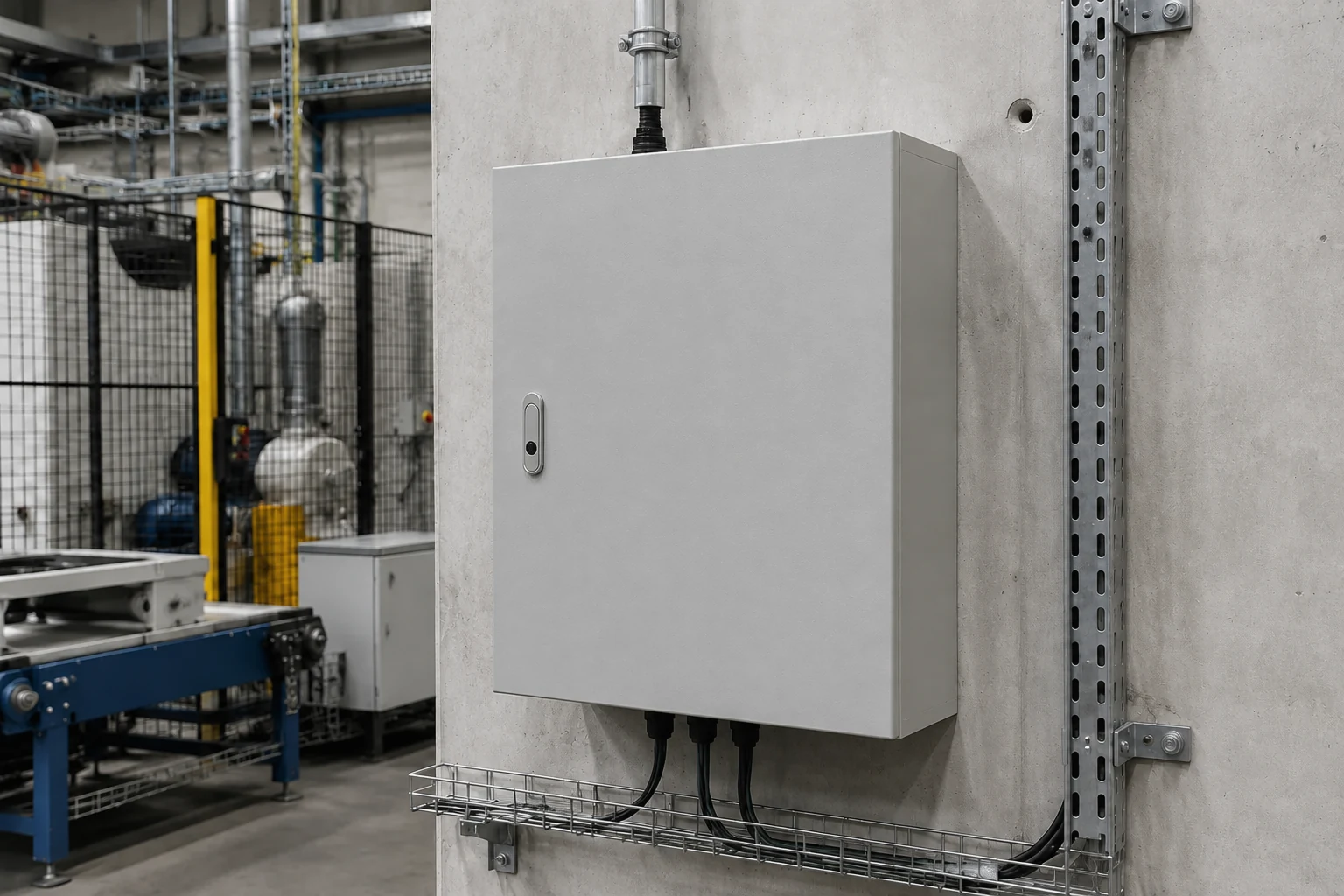

| Dry indoor electrical room | Is the standard powder system adequate for humidity, cleaning, and handling conditions? |
| Indoor area with condensation | Are the surface preparation, edge coverage, seams, and drainage details suitable for repeated moisture? |
| Outdoor, normal atmosphere | Is the powder resin intended for exterior UV and weather exposure? |
| Coastal or high-salinity location | Is a more robust pretreatment, primer, topcoat, or material change justified? |
| Chemical plant, washdown, or aggressive atmosphere | What chemicals, temperatures, cleaning methods, and corrosivity category must the coating system tolerate? |
ISO 12944 is useful as a corrosion-protection framework, but it should not be quoted carelessly as if it were a universal powder-coating certification. nVent’s enclosure guidance notes that ISO 12944 was developed for protective paint systems on steel structures rather than specifically for powder coatings or thin-sheet enclosures. Use it as part of a project-specific rationale, not as a shortcut to a guarantee. [1][7]

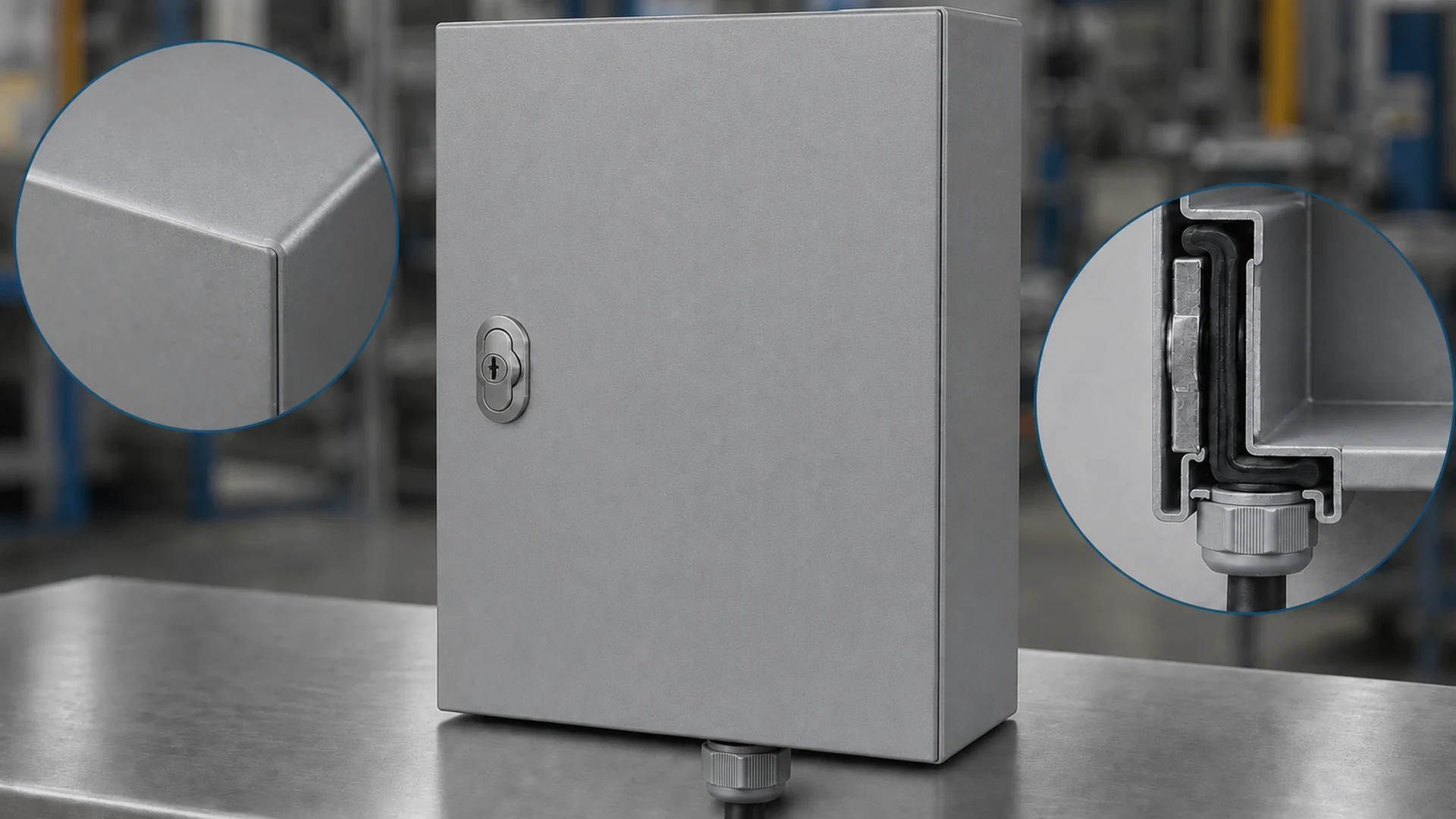

Pretreatment also does not establish an IP rating or a NEMA enclosure type by itself. These designations depend on the complete enclosure and its tested or evaluated configuration, including the door, gasket, seams, cable entries, vents, drains, and assembly details. Pretreatment helps protect the steel and preserve the coating system; it does not replace sealing design or a valid enclosure test.
If a drawing or quote says only “outdoor powder coated,” treat that phrase as a trigger, not a complete specification. Run 4C again and connect each answer to the actual humidity, salinity, UV, chemical exposure, condensation risk, and maintenance conditions.
Who should use this supplier checklist?
The same coating-system review looks different depending on who is approving the enclosure:
| Buyer role | What to verify first | Where the 4C record should remain visible |
|---|---|---|
| Panel builder | Grounding points, mounting-plate clearance, cut-outs, gasket lands, and repeatable dimensions | Drawing review or approved enclosure checklist |
| OEM machine builder | Drawing control, batch consistency, coating repair limits, and field-modification rules | RFQ appendix and supplier-approval file |
| Contractor | Outdoor exposure, cable entries, installation damage, touch-up method, and delivery documentation | Submittal package and site handover record |
| Quality engineer | Process stages, cure evidence, coating thickness, adhesion method, corrosion-test criteria, and traceability | Inspection plan, sample approval, and batch record |
What should you ask a powder-coated enclosure supplier?
Before approving a sample or purchase order, use the same four words every time. This makes the checklist easier to remember and easier to forward internally:
- Clean — What is the substrate? Carbon steel, galvanized steel, stainless steel, or a mixed construction?

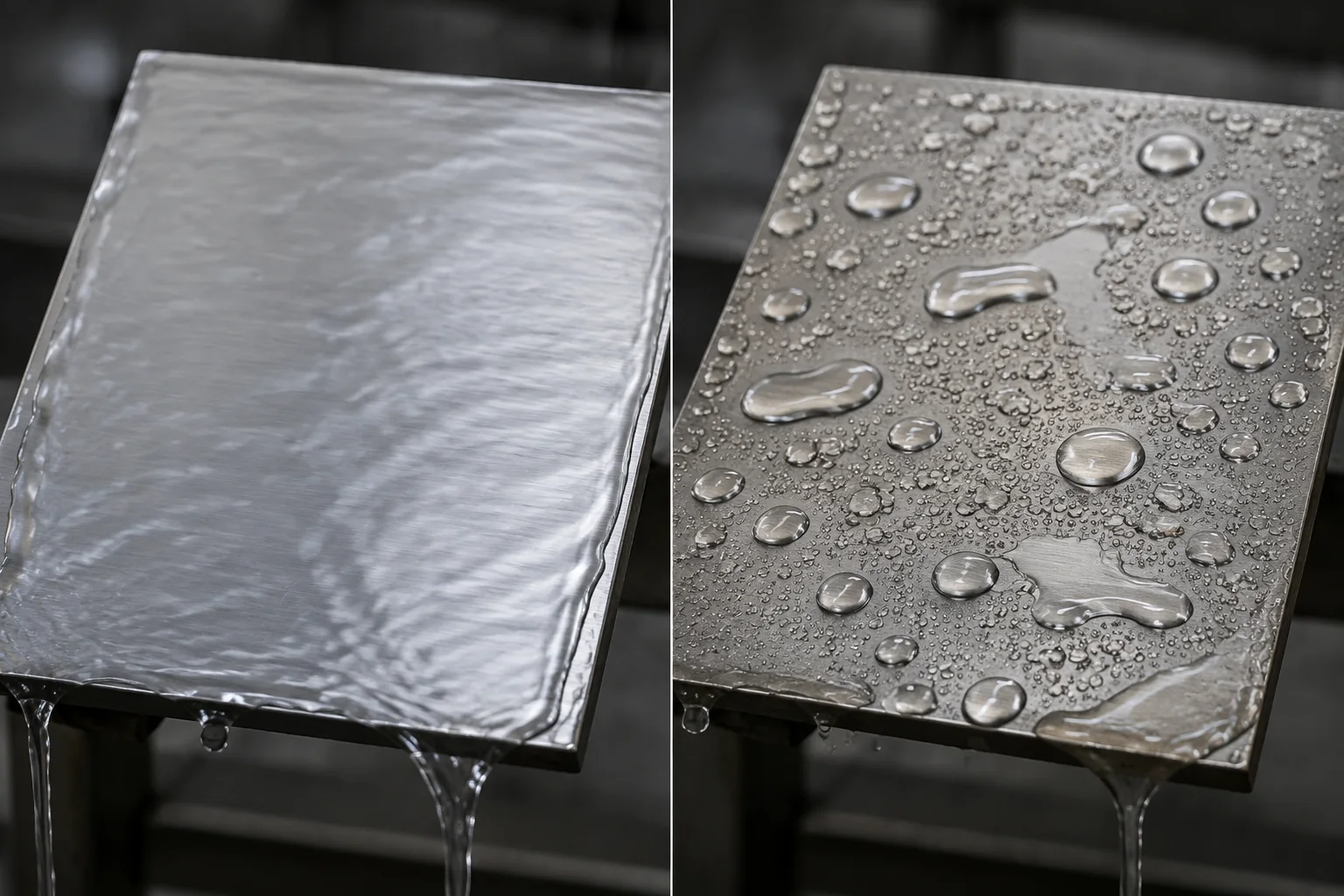

- Clean — How are oil, grease, scale, rust, salts, and welding residues removed? Ask for the process description, not only the word “cleaned.”
- Clean — How are rinse quality and carry-over controlled? A cleaning-stage name does not prove the surface was ready for conversion.
- Convert — What conversion treatment is used, and why does it fit this substrate and environment? Possible routes include iron phosphate, zinc phosphate, a nanoceramic or zirconium-based treatment, or another qualified process.
- Convert — How are difficult areas and critical contact points handled? Ask about edges, corners, welds, gasket lands, grounding points, threaded holes, and masking.
- Cure — What powder family is specified? Possible options include epoxy, epoxy-polyester hybrid, polyester, super-durable polyester, or a project-specific system.

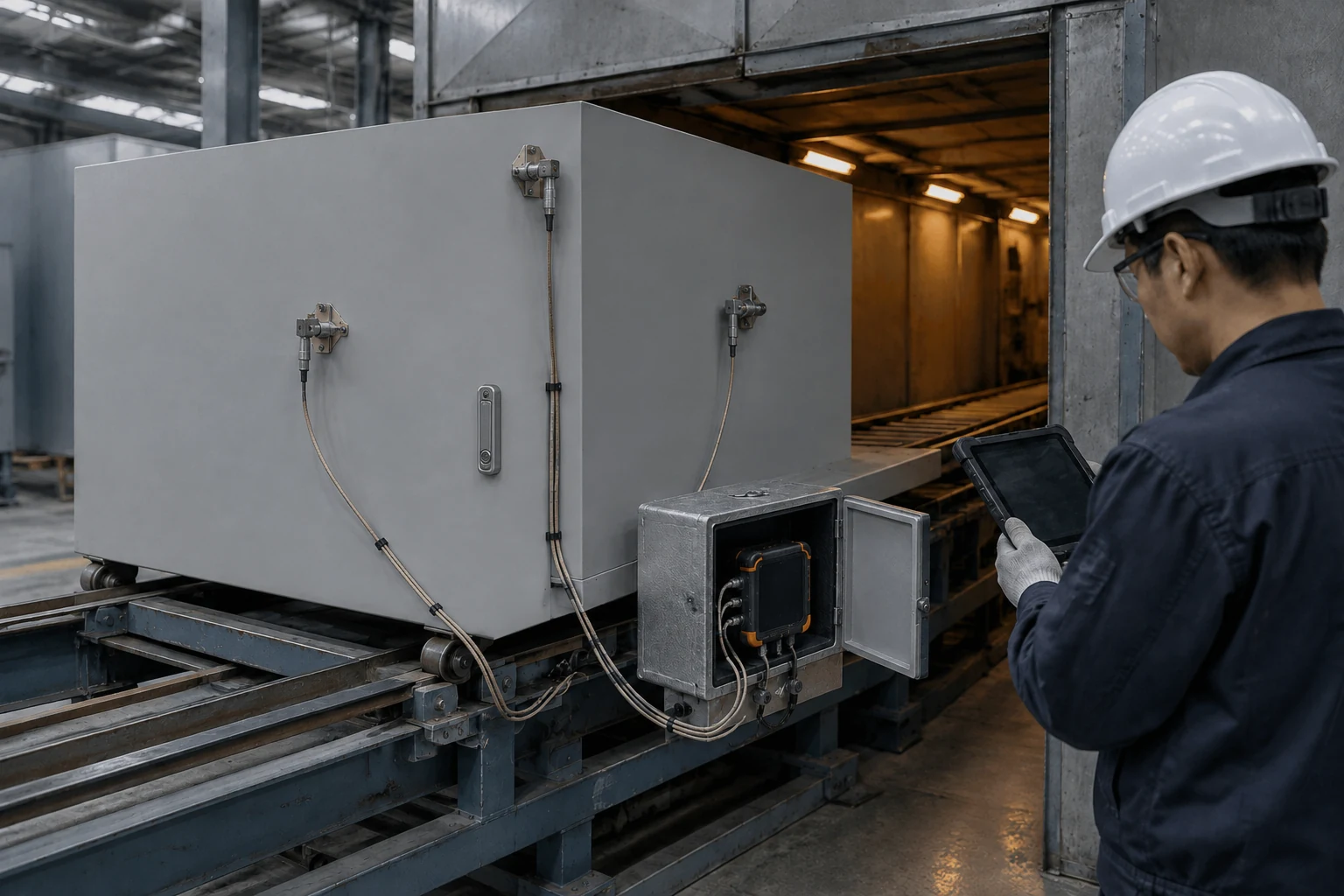

- Cure — How is curing verified on the part? Ask whether the supplier verifies part metal temperature and cure time against the powder manufacturer’s technical data sheet.
- Cure — What coating thickness range is agreed? Do not assume a thicker film automatically means better corrosion performance; the target should match the powder, geometry, and application.
- Confirm — Which tests will be used, and what are the acceptance criteria? Agree the method, specimen, exposure, evaluation, and reporting format before testing.
- Confirm — What documents and repair controls close the loop? Ask for traceability, inspection records, required test evidence, and the approved procedure for damage or field modification.

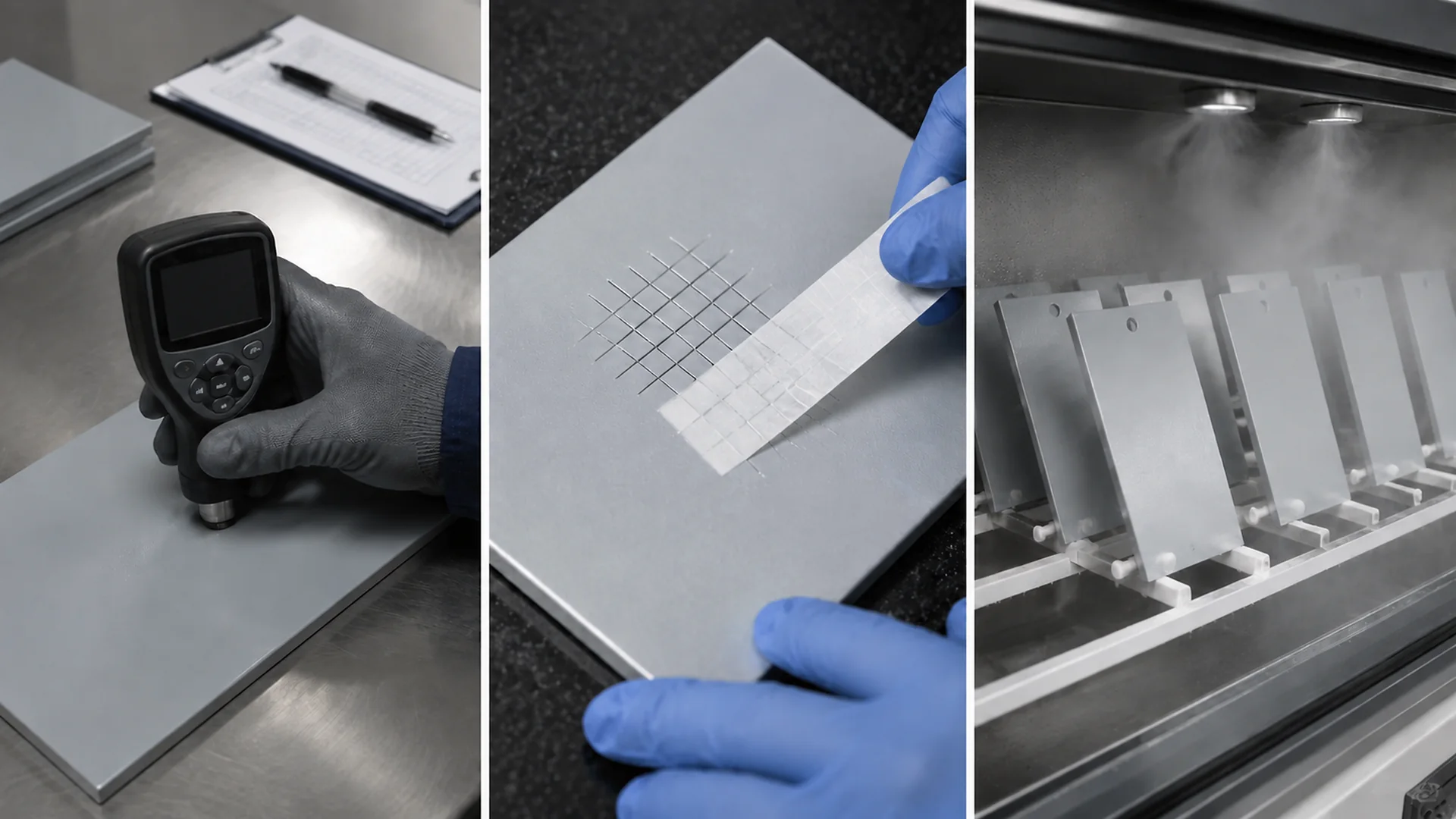

For adhesion, a project may reference ISO 2409 or ASTM D3359, but the method and acceptance level must be agreed based on the coating thickness and substrate. ISO 2409 is a cross-cut classification method, while ASTM D3359 is a tape-test method developed for coatings on metallic substrates; neither should be treated as a complete substitute for a project specification. [3][5]
For corrosion screening, ISO 9227 or ASTM B117 may be used when appropriate. The critical detail is that salt spray exposure is a controlled test, not a universal conversion from test hours to years in service. ASTM notes that standalone salt spray results do not consistently predict performance in natural environments, and ISO 9227 leaves product-specific exposure periods and interpretation to the relevant specification. [4][6]
A serious supplier should be able to show more than a process name. Ask for a process flow, the powder manufacturer’s technical data sheet, the agreed inspection points, a sample panel inspection record, and a clear explanation of what is masked, measured, or reworked. If some details are confidential, the supplier can still provide a nonconfidential process summary without disclosing proprietary bath chemistry.
Copy the 4C check into your RFQ or drawing review
Use this compact block as a visible handoff between purchasing, engineering, quality, and the supplier:
4C PRETREATMENT CHECK
Project / drawing: ____________________ Environment: ____________________
CLEAN
[ ] Substrate confirmed
[ ] Contamination-removal method described
[ ] Rinse and carry-over controls identified
CONVERT
[ ] Conversion treatment identified
[ ] Compatibility with substrate and environment explained
[ ] Edges, welds, threads, grounding points, and masking addressed
CURE
[ ] Powder family and technical data sheet identified
[ ] Film thickness range agreed
[ ] Part metal temperature and cure time verified
CONFIRM
[ ] Inspection and acceptance criteria agreed before production
[ ] Required adhesion and corrosion evidence defined, as applicable
[ ] Traceability and repair procedure available
Decision: [ ] Approved [ ] Clarification required [ ] Not approved
Reviewer / date: _________________________________________________This checklist is not a coating specification or acceptance standard by itself. Its job is to expose missing information early, before a color code is mistaken for a complete coating system.
Common mistakes that create coating problems
1. Choosing the color before defining the environment
RAL color, gloss, and texture matter, but they do not define corrosion resistance. Start with the environment, then select the coating system.
2. Treating coating thickness as a substitute for pretreatment
A thicker film can change appearance and barrier performance, but it cannot reliably correct a contaminated or poorly converted steel surface.
3. Comparing salt spray hours as if they were service life
Two suppliers may quote different specimens, substrates, scribe methods, exposure conditions, or evaluation rules. Compare the full test record, not just the headline number.
4. Ignoring the uncoated contact points
Grounding points, bonding surfaces, gasket lands, and threaded interfaces may need masking or controlled post-coating treatment. Coating over a critical electrical contact is not a quality improvement.
5. Assuming the coating creates the enclosure rating
The coating system contributes to corrosion resistance, but IP performance and NEMA enclosure ratings depend on the complete enclosure design and its tested or evaluated configuration.
6. Using certification language without project evidence
“Designed for,” “can be manufactured to,” “tested to,” and “certified” are not interchangeable statements. Use the strongest wording only when the exact product, configuration, and document support it.
What should the coating specification say?
A useful purchase specification should describe the system, not just the appearance. The 4C structure makes missing requirements easier to spot:
4C PRETREATMENT AND COATING SPECIFICATION
Project: [project, drawing, or part number]
Installation environment: [indoor/outdoor, humidity, salinity, chemicals, UV]
CLEAN
Substrate: [steel grade, thickness, and incoming surface condition]
Contamination removal: [agreed cleaning and degreasing route]
Rinse control: [control method and supporting evidence]
CONVERT
Conversion treatment: [agreed chemistry or process family]
Critical areas: [grounding points, gasket lands, threads, cut edges, welds]
Masking and electrical contact requirements: [areas and acceptance criteria]
CURE
Powder system: [family, manufacturer, product code, color, texture, gloss]
Dry-film thickness: [target range and measurement locations]
Cure verification: [part metal temperature and cure time verified against the powder TDS]
CONFIRM
Appearance and thickness: [inspection methods and acceptance criteria]
Adhesion: [agreed method and classification]
Corrosion test: [method, specimen, exposure, evaluation, acceptance]
Documentation: [batch traceability, inspection record, test report if required]
Repair procedure: [approved touch-up and field-modification limits]
4C signoff: [supplier representative, buyer reviewer, date, and revision]This format gives the buyer something measurable to review. It also gives the manufacturer enough information to choose a pretreatment and coating system that fits the actual enclosure instead of guessing from a color name. Keep the completed 4C block with the RFQ, approved drawing, sample record, or supplier file so the decision remains visible after the article is closed.
The bottom line
Pretreatment matters because it determines whether powder-coated steel enclosures have a clean, chemically prepared surface to bond to—and whether corrosion is slowed at the steel/coating interface. For standard indoor applications, a controlled cleaning and conversion process paired with a suitable powder may be enough. For outdoor, coastal, chemical, or condensation-heavy applications, the pretreatment, powder, primer, substrate, geometry, and test plan need to be selected as one system.
The rule to keep is simple: whenever a quote or drawing says “powder coated,” run the 4C check. Clean. Convert. Cure. Confirm.
If you are comparing enclosure suppliers, send the drawing, steel grade, installation environment, desired finish, critical contact areas, and required test method. Ask the supplier to return a completed 4C pretreatment and coating proposal, not just a color code. A RAL code tells you how the enclosure should look; the 4C record tells your team what still needs to be verified.
Frequently Asked Questions
What is the 4C Pretreatment Check?
It is a buyer-side review framework: Clean asks how the substrate and contamination were controlled; Convert asks which surface conversion treatment was used; Cure asks how film thickness and the cure schedule were verified; and Confirm asks what inspection, test, traceability, and repair evidence supports the system. Use it whenever a quote or drawing says only “powder coated.”
Can steel be powder coated without pretreatment?
Powder can be applied to untreated steel, but skipping or inadequately controlling pretreatment increases the risk of poor adhesion, premature corrosion, and inconsistent appearance. If a supplier proposes no pretreatment, ask what surface-preparation method and evidence support that decision for your substrate and environment.
Is zinc phosphate always better than iron phosphate?
No. Zinc phosphate may be selected when a higher corrosion-protection margin is required, but the correct result depends on the complete system and the supplier’s process control. Iron phosphate can be appropriate for many standard applications. Compare the substrate, environment, chemistry, powder, and test evidence together.
Does pretreatment determine the IP65 or IP66 rating?
No. Pretreatment supports corrosion resistance and coating adhesion. IP performance depends on the complete enclosure design, gasket, door compression, seams, cable entries, vents, drains, and the tested configuration.
What documents should a supplier provide?
At minimum, request the substrate and powder details, the agreed pretreatment route, the powder manufacturer’s technical data sheet, curing requirements, inspection criteria, and any project-specific adhesion or corrosion test record. Ask for certification documents only when the exact product and configuration are covered.
Do 500 or 1,000 salt spray hours equal a fixed number of service years?
No. Salt spray hours are not a universal service-life conversion. The result depends on the test method, specimen, substrate, scribe, exposure, evaluation, and the actual service environment. Use the test as one part of a coating-system decision, not as a stand-alone lifetime guarantee.
References
[1] nVent HOFFMAN, Powder paint coating system — enclosure coating system, pretreatment stages, powder application, environmental selection, and testing framework.
[2] Henkel Adhesives, Iron phosphating — iron-phosphate purpose, adhesion, corrosion protection, and process summary.
[3] ISO, ISO 2409:2020 Paints and varnishes — Cross-cut test — cross-cut classification method for coating separation from the substrate.
[4] ISO, ISO 9227:2022 Corrosion tests in artificial atmospheres — Salt spray tests — salt spray test methods and limits of what the standard specifies.
[5] ASTM International, D3359 Standard Test Methods for Rating Adhesion by Tape Test — adhesion testing for coatings on metallic substrates.
[6] ASTM International, B117 Standard Practice for Operating Salt Spray (Fog) Apparatus — controlled salt spray practice and a warning against using standalone results to predict performance in natural environments.
[7] ISO, ISO 12944-3:2017 Paints and varnishes — Corrosion protection of steel structures by protective paint systems — Design considerations — corrosion-protection design framework; confirm applicability for the specific enclosure and powder system.
